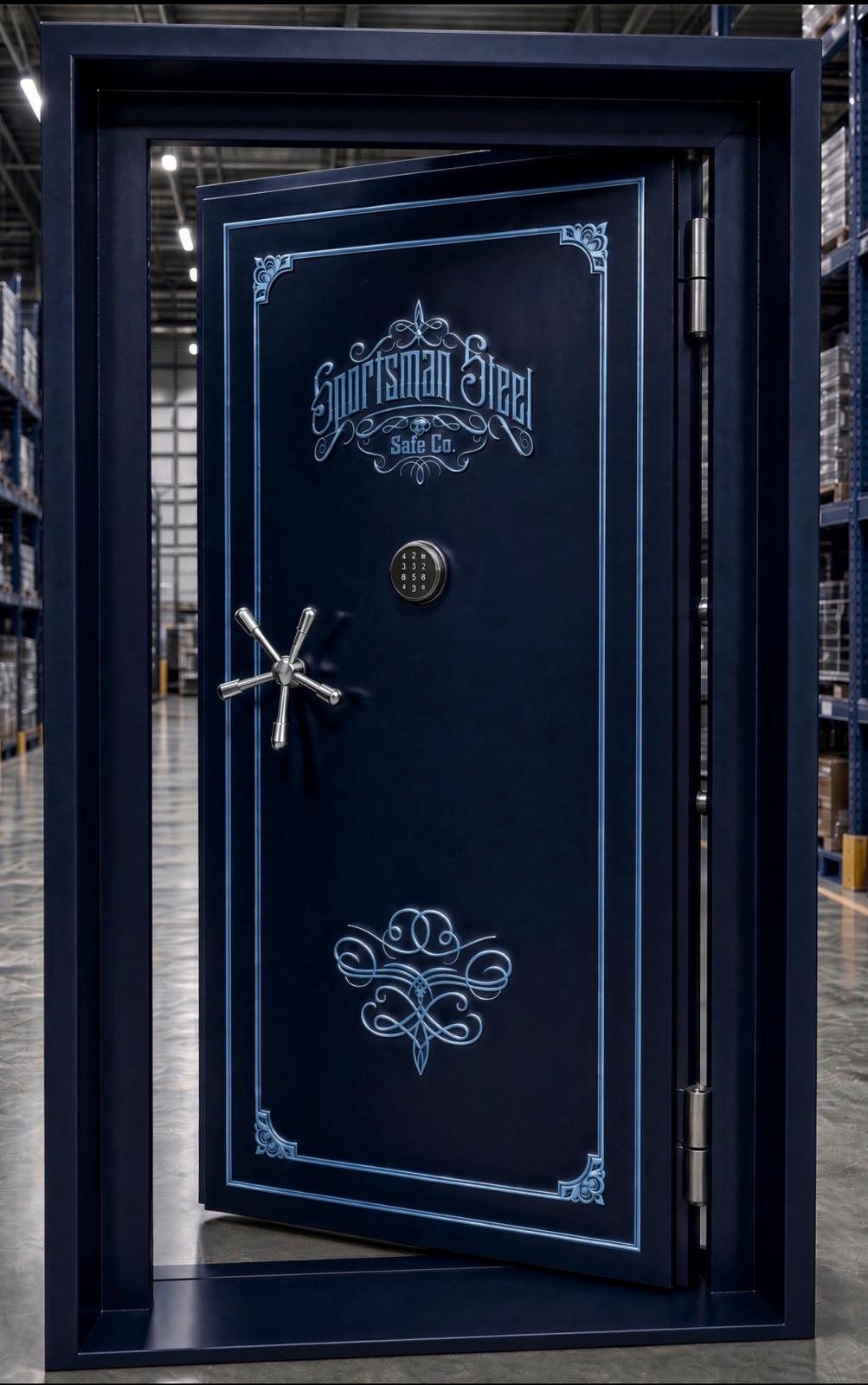

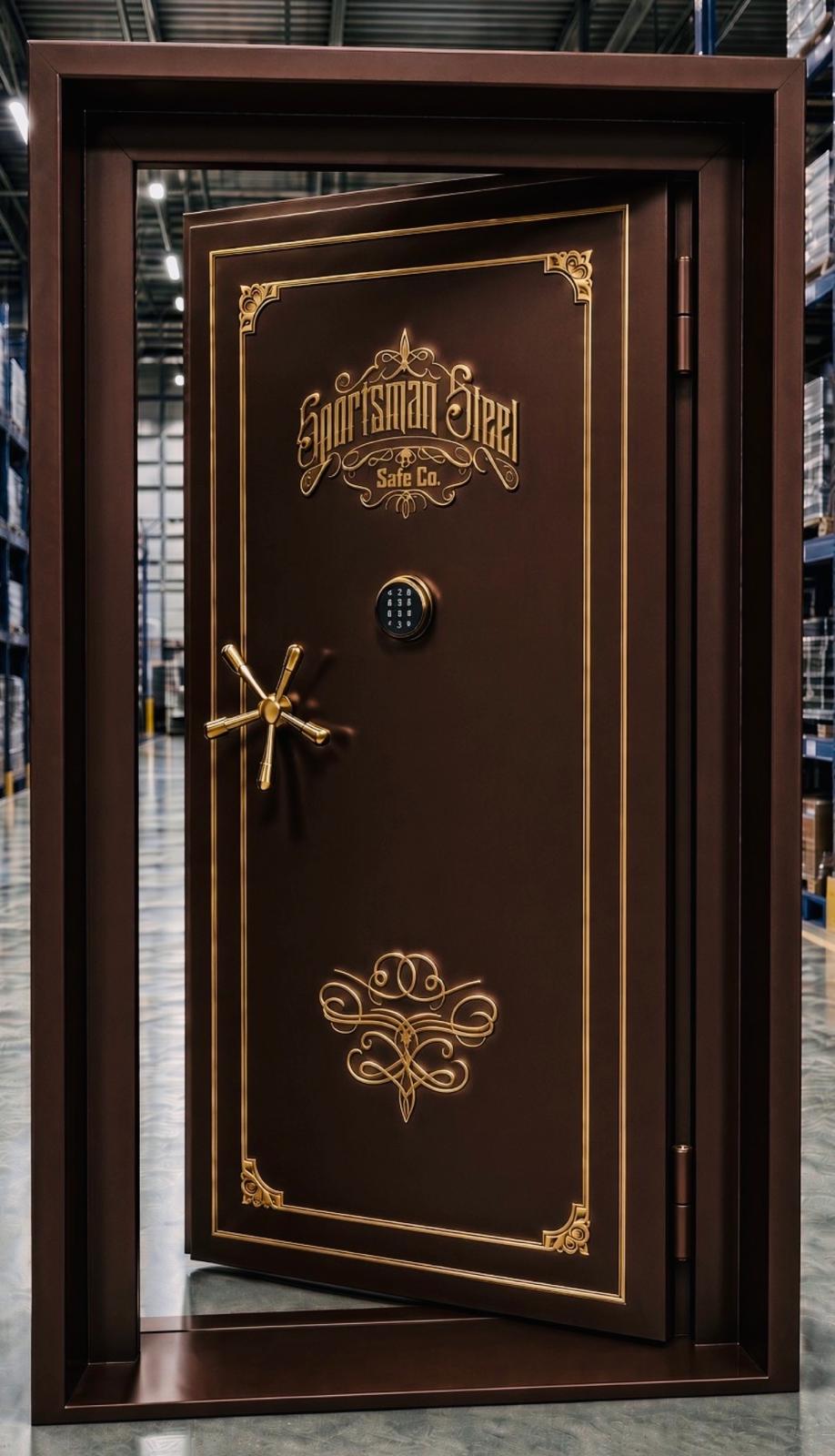

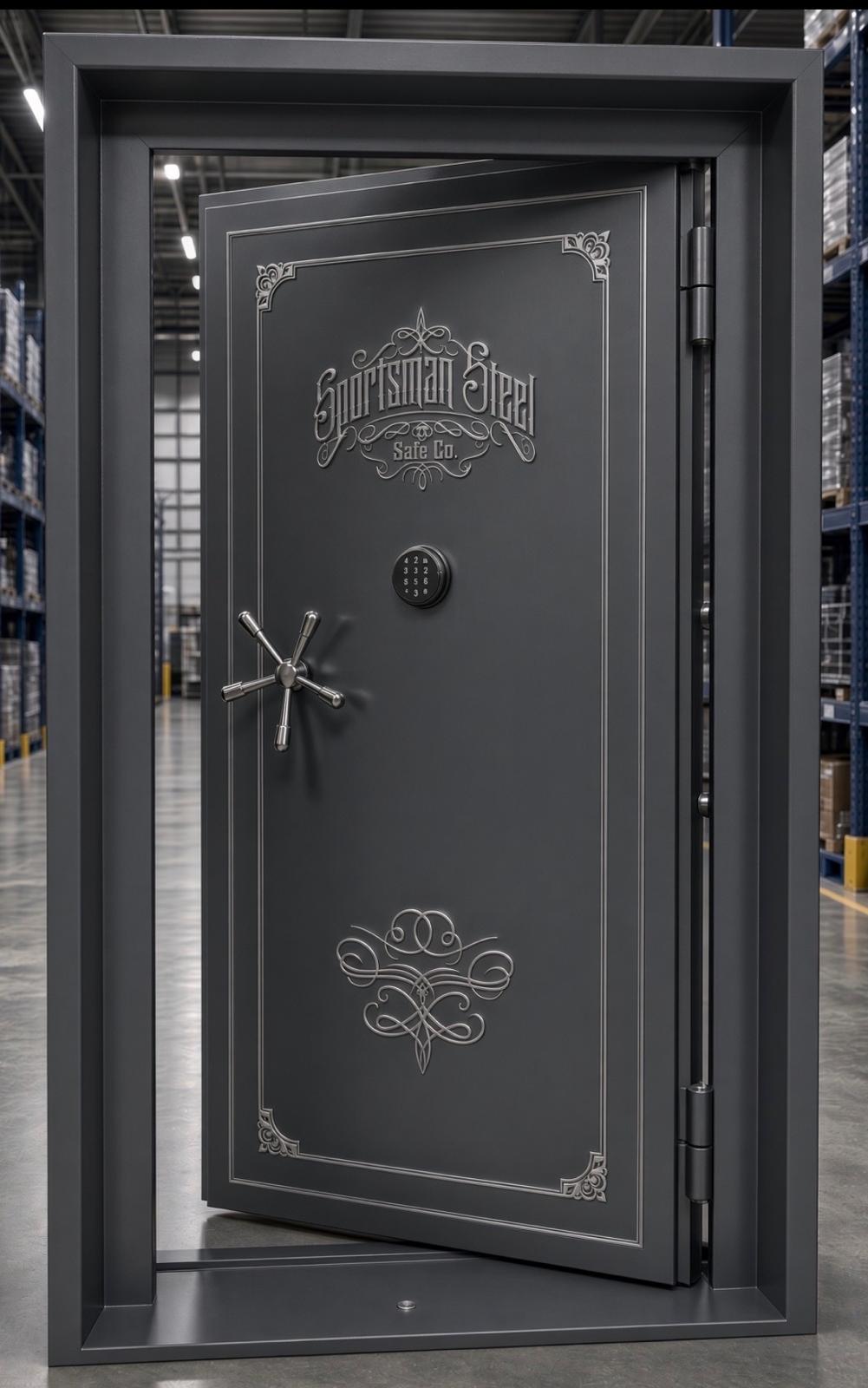

FEDERALIST SERIES VAULT DOOR

Best Vault Door in Commercial Industry - 1" Steel Door

Equipped with 1" steel plate & 2" chest plate, our Federalist not only protects against the most advanced burglary attempts, but it's also ballistic resistant. It's a bit more than our standard vault doors, but if you're leaving the U.S. for months at a time, the Federalist gives great piece of mind.

3" Step System Door - 2 Hour Fire 1" AR-500 BALLISTIC STEEL 80"x30"x8" - $13,995 80"x36"x8" - $15,495 80"x42"x8" - $16,995

2 HOUR FIRE Featuring our NEW 1" Solid Steel Door 1" Steel Chest-plate 80"x30"x8" - $7695 80"x36"x8" - $8795 80"x42"x8" - $9295 NEW - 6000 Degree Concrete fireproofing - 4 x more fire resistant than drywall 3" Step System Door- 2 Hour Fire 3/4" Steel Bolt Protectors 1" Solid Steel Door - USA Steel 1" Steel Chest Plate 6000 Concrete Fire-Proofing - 4 x More fire resistant than drywall 2 Palusol® Expand Gaskets 1" 60rw Hardplate 5- Prong Bankers Wheel Sargent & Greenleaf Lock - Biometric Lock Available 8 Custom Paint Colors 4 Barrel Relockers - 1" x 5" Solid Steel Internal Release - Panic Room Handle 18 Bolts - Texas Tech Certified Storm Door Life Warranty - Lock & Fire Bullet-Proof Door & Inward Swing Available

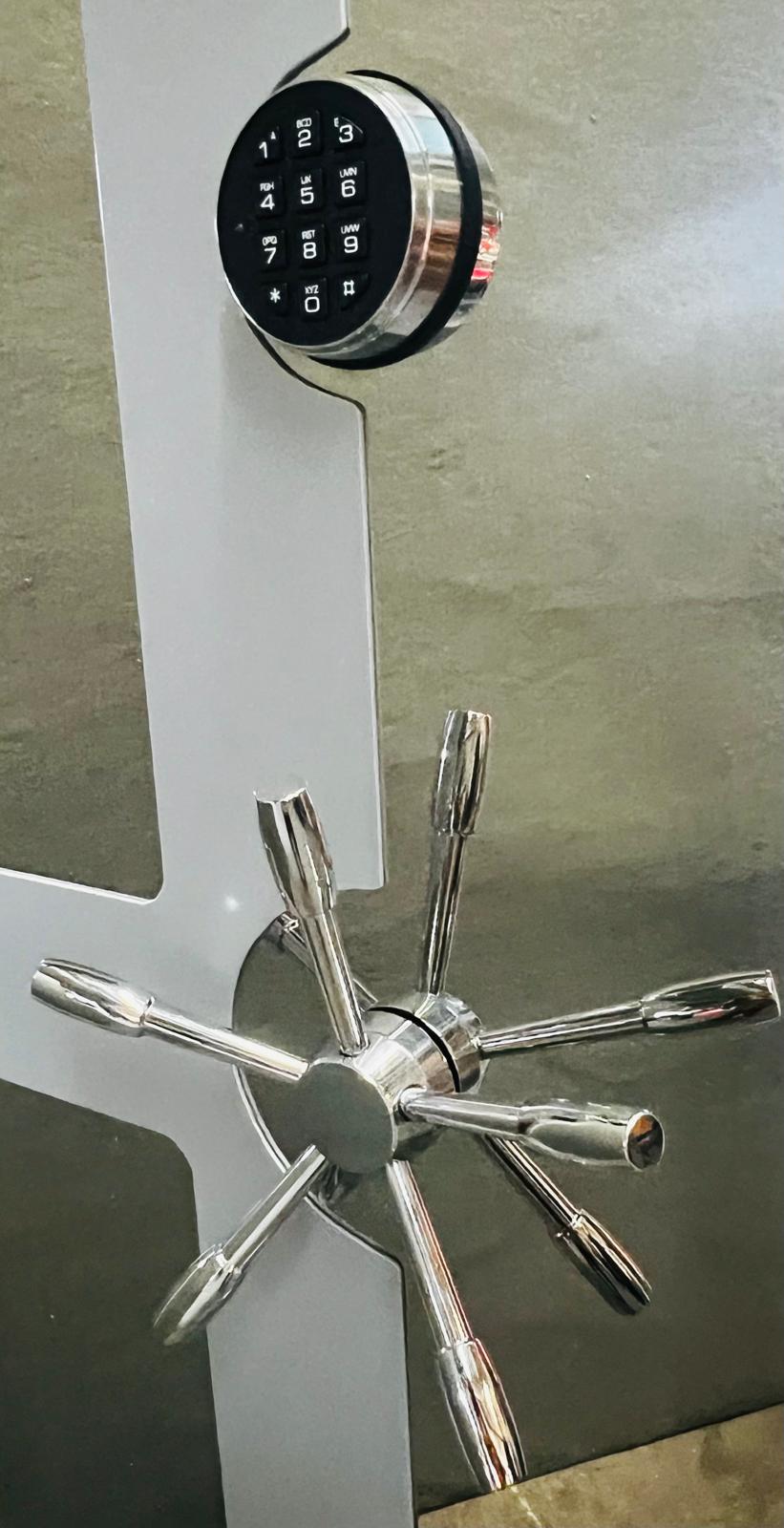

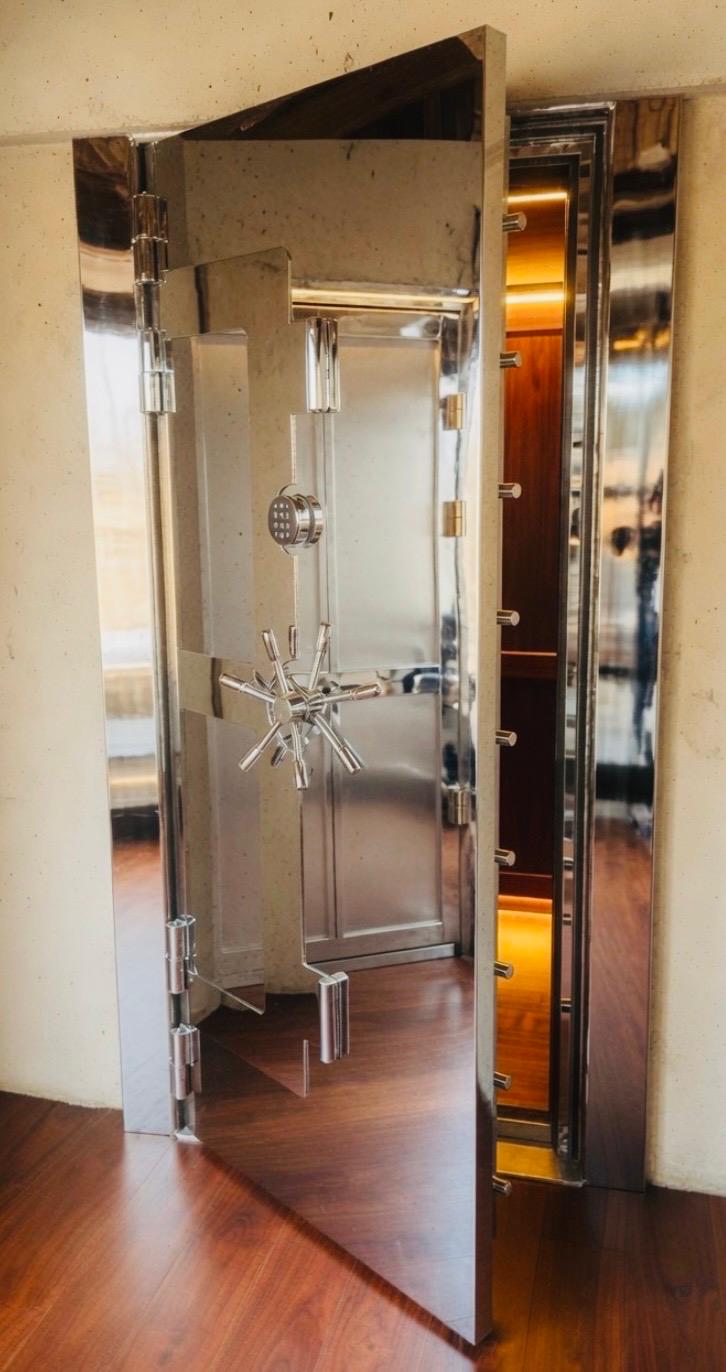

NEW SWISS BANK SERIES VAULT DOOR

Most Secure Vault Door in Residential Vault Industry

If you want the best vault door in our industry, our "Swiss Bank Series" is your vault. Equipped with a six-point sealing step door, three layers of steel and five relockers, this stainless steel vault is not only beautiful and elegant, but it's one of the most fire resistant and secure vaults in the USA. There isn't an inch of this vault door that isn't scrutinized for perfection. Take a look at our features and call for a quote. You only buy one vault door, make it the best!

3" Step System Door - THE SWISS BANK VAULT TORCH-RESISTANT STAINLESS STEEL 80"x36"x8" - $18,450 80"x42"x8" - $19,750 80"x50"x8" - $23,950

Ultimate Security & Fire Resistance Featuring 3 Layers of Steel Five High-Security Relockers Dual Palusol® Sealing Gaskets Standard Features 3" Step System Door - 2.5 Hour Fire Protection 3/4" Steel Bolt Protectors 1" Torch-Resistant Spider Web of Stainless Steel in Door and Frame 6000 Degree Concrete Fireproofing 18 Locking Bolts - Lifetime Warranty Internal Release - Panic Room Handle Sargent & Greenleaf Lock (Group 1) Stainless Steel Exterior Finish 4 Barrel Relockers - Drill-Proof Design Texas Tech Certified Storm Door Elegant Swiss Embellishments on Door Quadruple Zerk Hinges - Brass Fittings Optional Inward Swing Door Bullet-Proof Door & Inward Swing Available

---

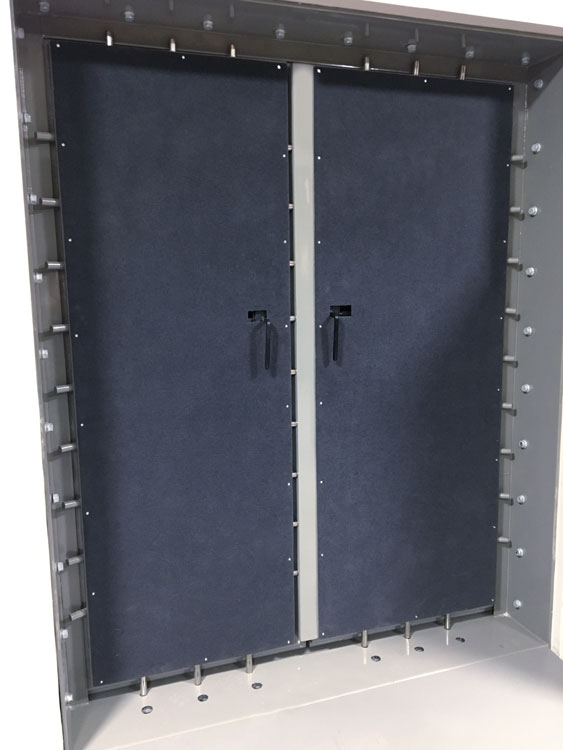

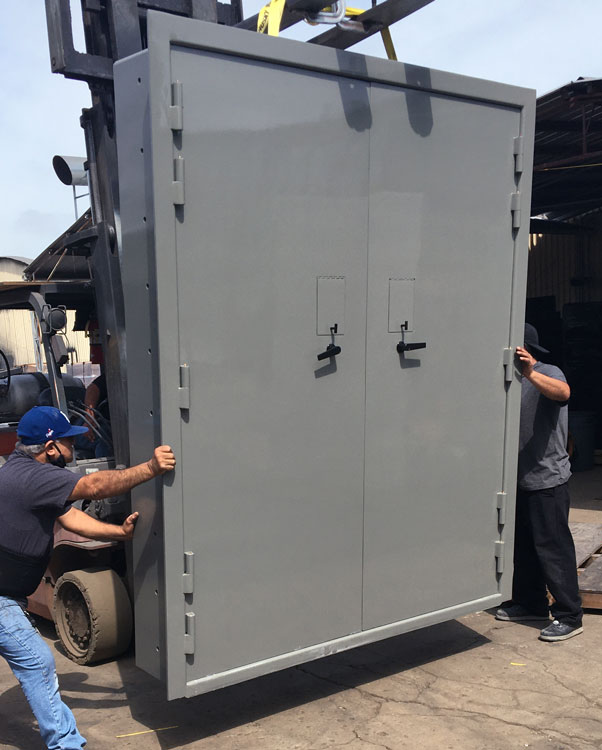

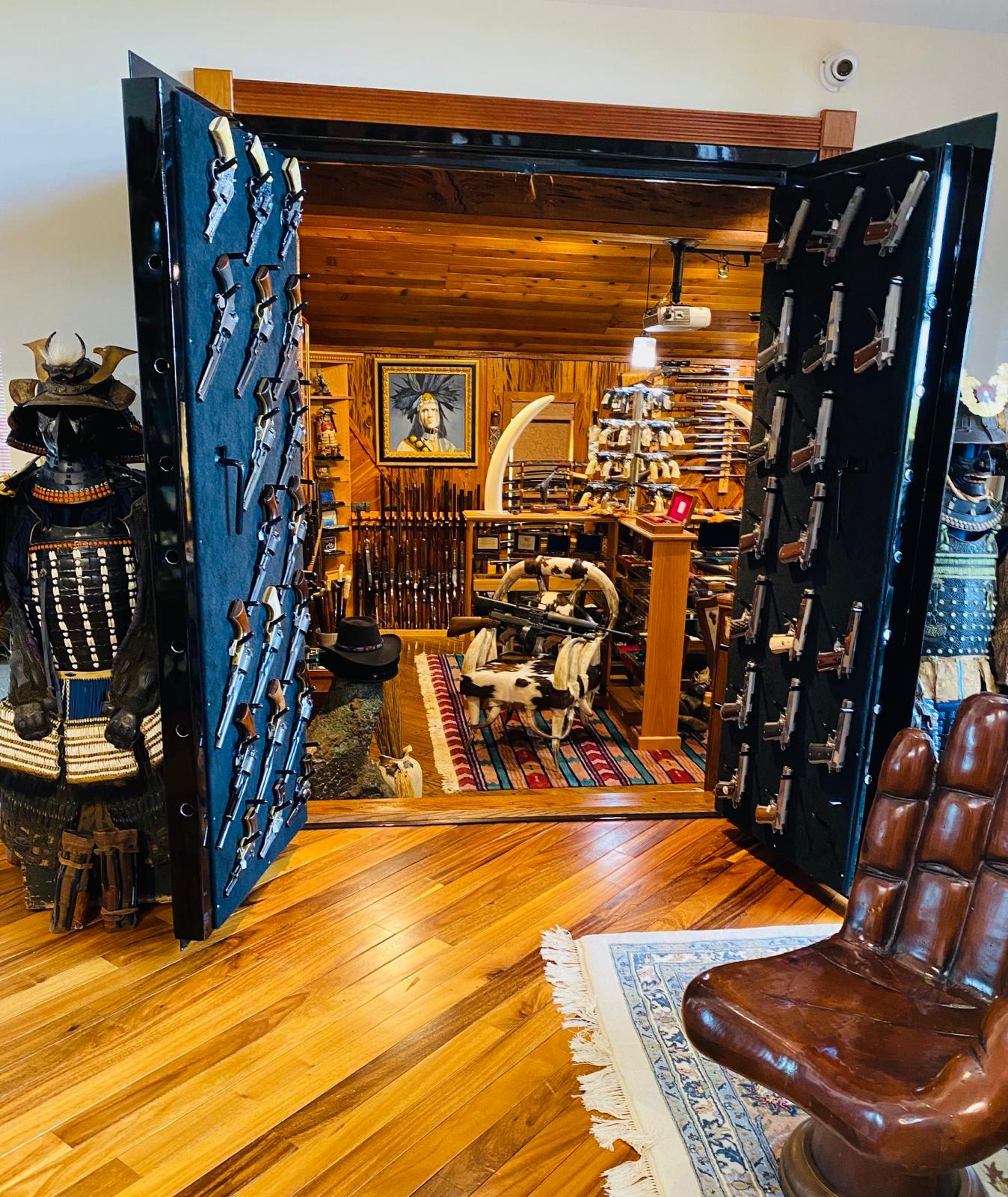

DOUBLE DOOR SERIES VAULT DOOR

Best Vault Door for Clients Who Need Wide Walk-Through Spaces

Our Double Door Vault Doors come with no center partition. This allows clients massive walk-through spaces for industrial and commercial use. If you're vault room needs to be entered with pallet-jacks and forklifts, our double door vault is for you. Each super secure vault door comes with 18 bolts, it's own Group II lock, internal mechanism & relocking system. Our Double Door vault comes in 90 Minute, 2HR & 2.5HR fire levels. Call us for a quote.

Click Image

Click Image

Click Image

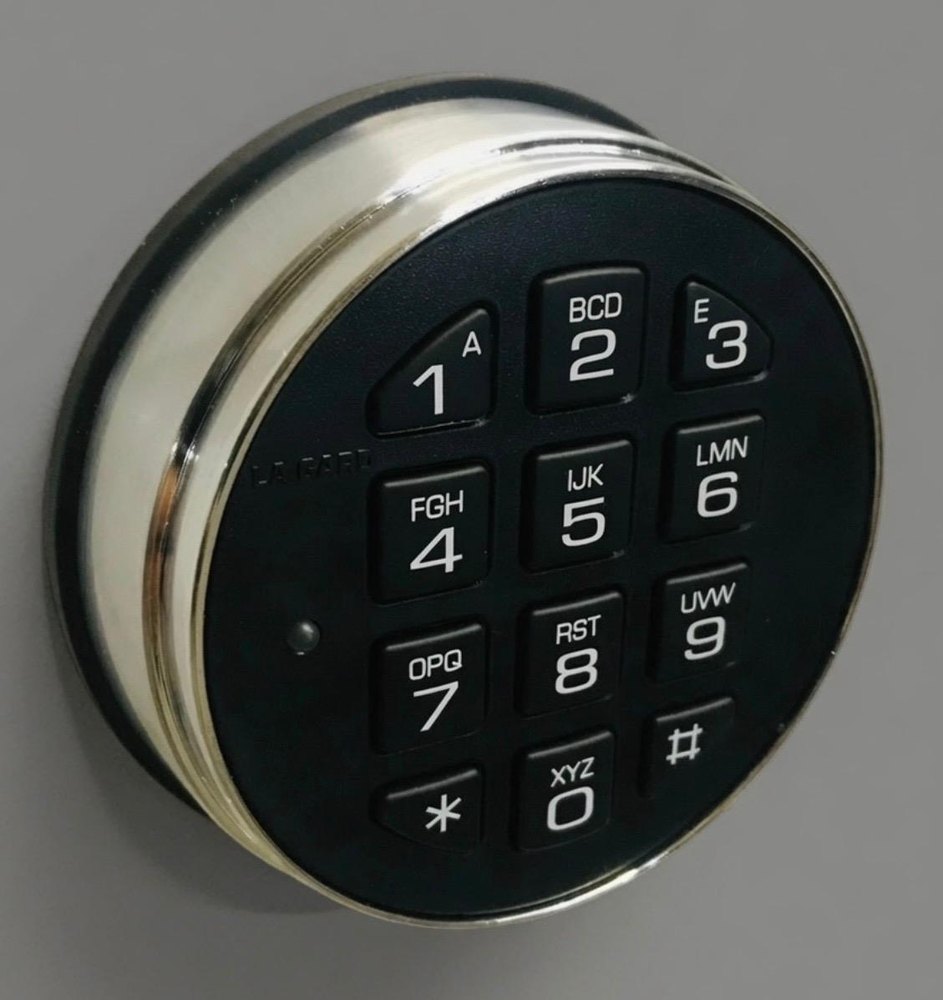

· S & G Lock - U.S. DIGITAL LOCK OPT.
· SPINDLE WHEEL or FLAT HANDLE
· 8 SEMI-GLOSS FINISHES
· TWIN EXPANDABLE GASKETS
· 4 BARREL RELOCKERS

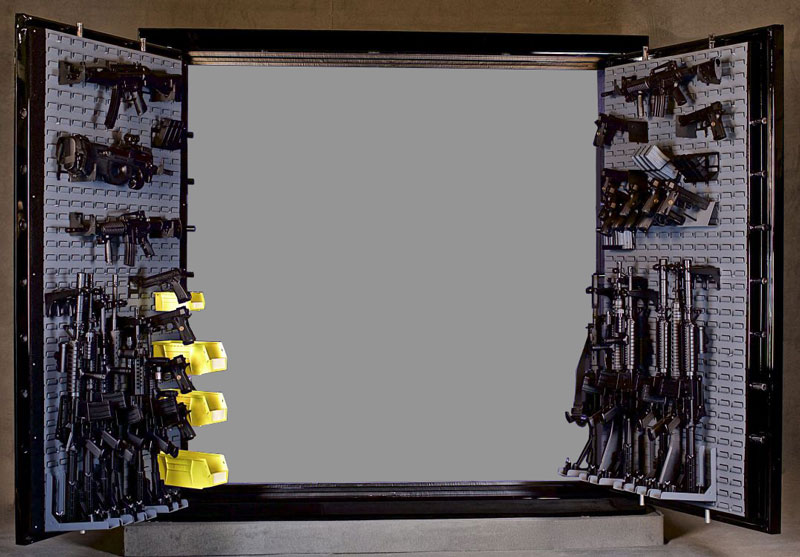

· DOUBLE TACTICAL PANELS

· 60 BOLT LOCK-UP SYSTEM
· 1/2" CHEST PLATES
· 1/2" HARD PLATE

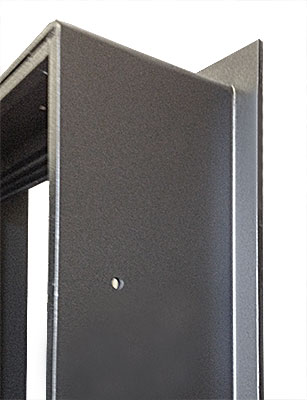

· 3/4" ANTI-PRY STEEL FRAME
· LIFE WARRANTY FIRE & LOCK
· MADE IN THE USA

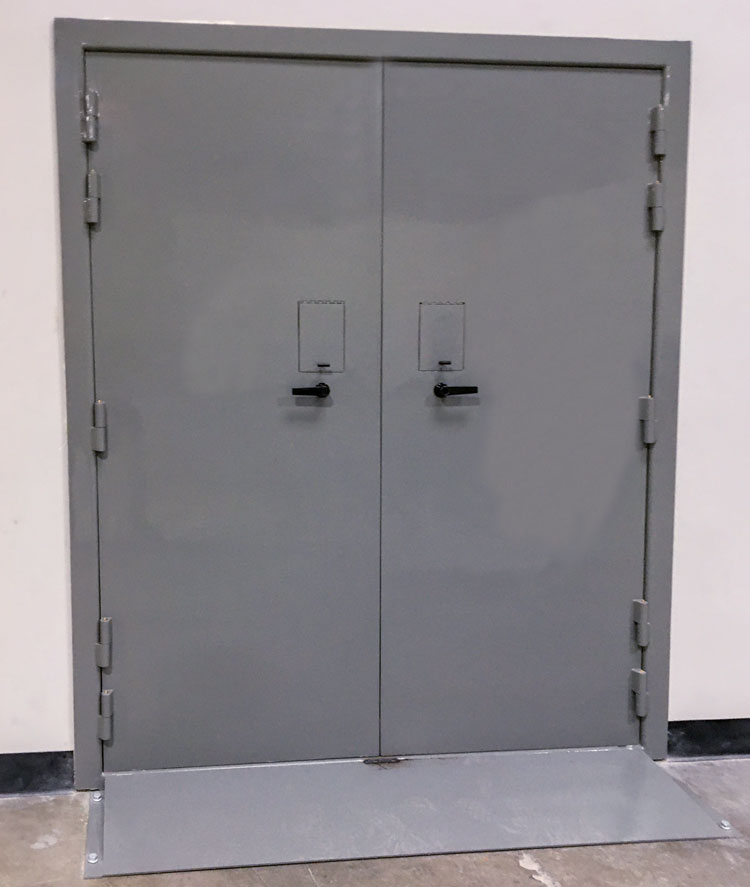

NEW - DOUBLE DOOR VAULT
90" X 75" X 10"
1 3/4" Comp Door - 90 Min Fire - $12,995

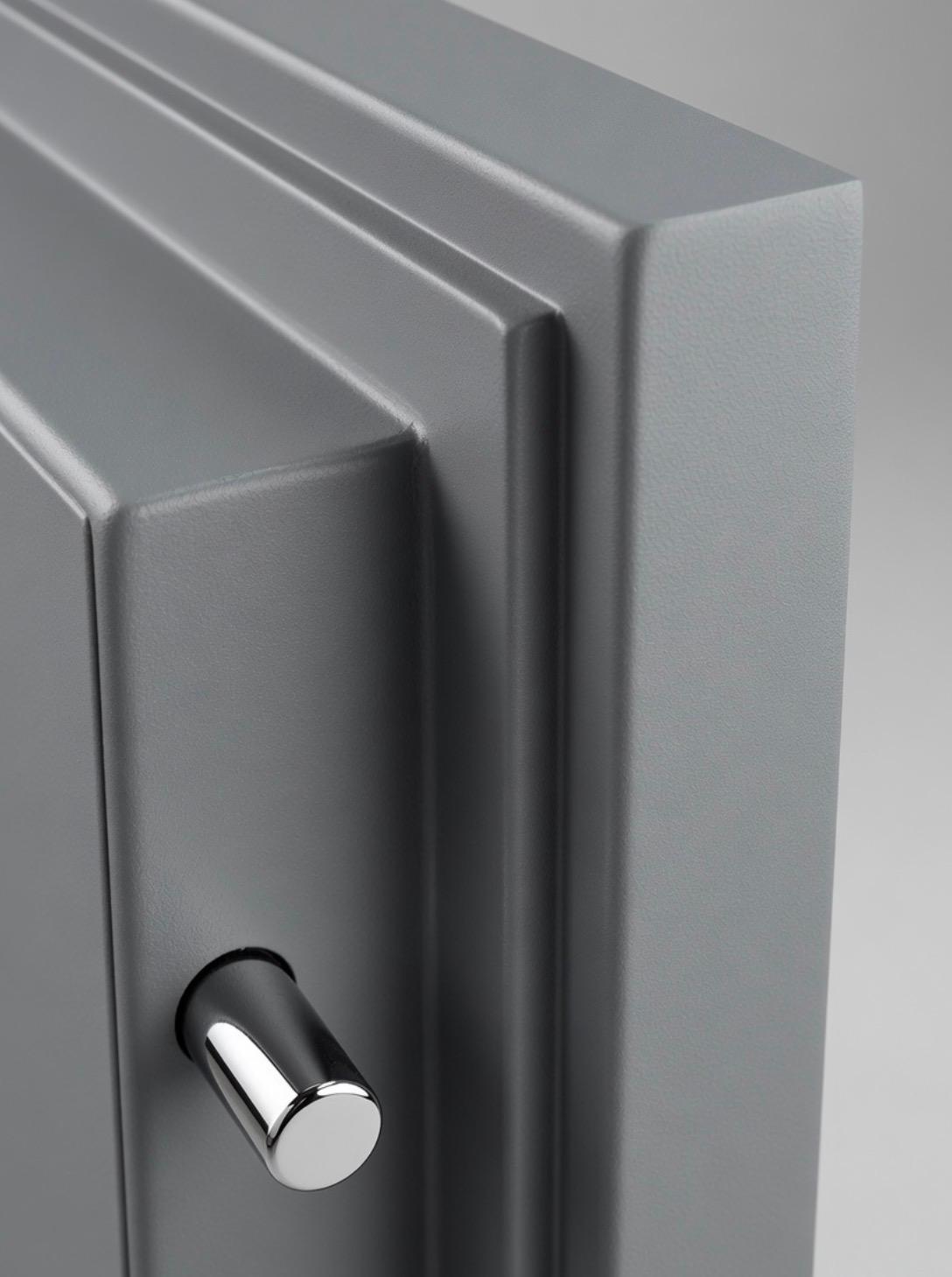

2" Step Door - 2HR Fire - $15,995
3" Step Door - 1/2" Steel - $19,595
CALL FOR CUSTOM SIZES

Custom Double Door Vault Door

---

SHIPPING CONTAINER VAULT ROOM
Convert a shipping container to a Double Steel High Security Vault Room
Call For Pricing - 800-266-7150



9.5' T x 8' W x 40' D - $69,950
2" Step Door, 90 Min Fire - $83,996

9.5' T x 8' W x 20' D - $49,950
2" Step Door, 90 Min Fire - $59,950

2" STEP DOOR - 90 MINUTE FIRE OUTER STEEL - 3/16" Inner Steel AC/HEATER Unit - With Remote S & G Lock - DIGITAL OPTIONAL GRAY SEMI-GLOSS FINISH VIBRATION SENSOR - SET TO CELL

1100lbs VAULT DOOR - 2 HR FIRE CONCRETE FIRE INSULATION 2 EXPANDABLE GASKETS 1/2" HARD PLATE 3/4" ANTI-PRY FRAME 2 INDEPENDENT RELOCKERS

TACTICAL WALL PANELS - $295 EACH
ORDER OUR TACTICAL VAULT ROOM INTERIORS - CALL FOR QUOTE

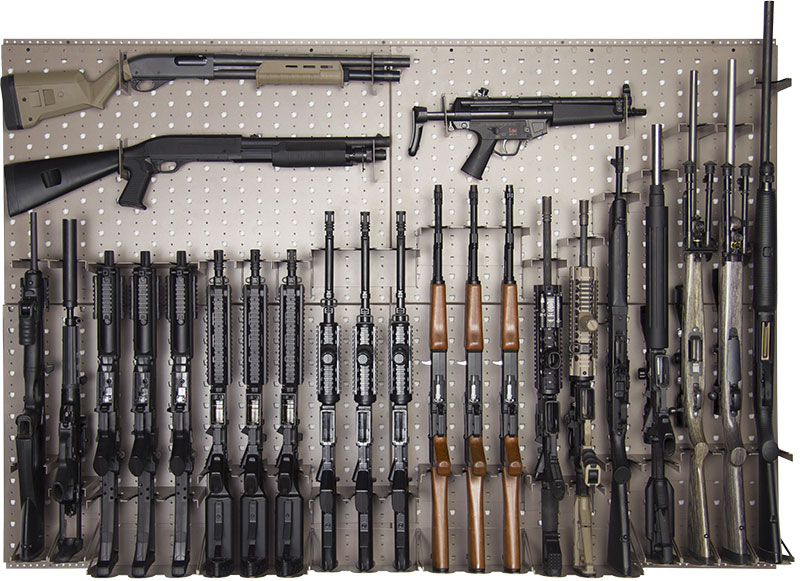

Click Image Tactical Door Backs

Click Image Gun Room Armory

Click Image Gun Room Door Back

Click Image Gun Room Storage

Click on images above to enlarge.

DAY GATE

Order a Sportsman Day Gate in front of your vault door so employees can easily access your vault room during office hours. Comes with 3/16” door frame, 10 gauge mesh perforated steel and 1” solid steel hinges  — From: $2995

DAY GATES
80" x 30" x 4" - $2995
80" x 36" x 4" - $3595
80" x 42" x 4" - $3995

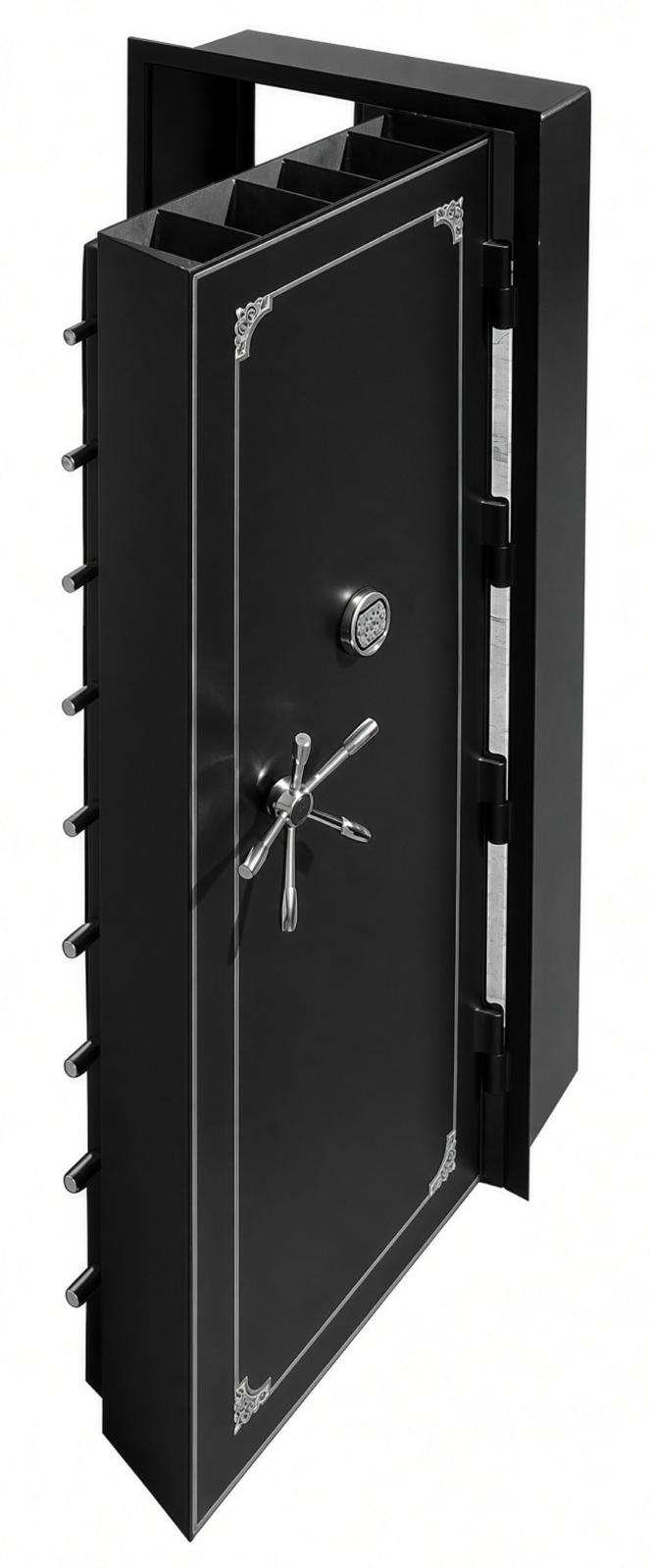

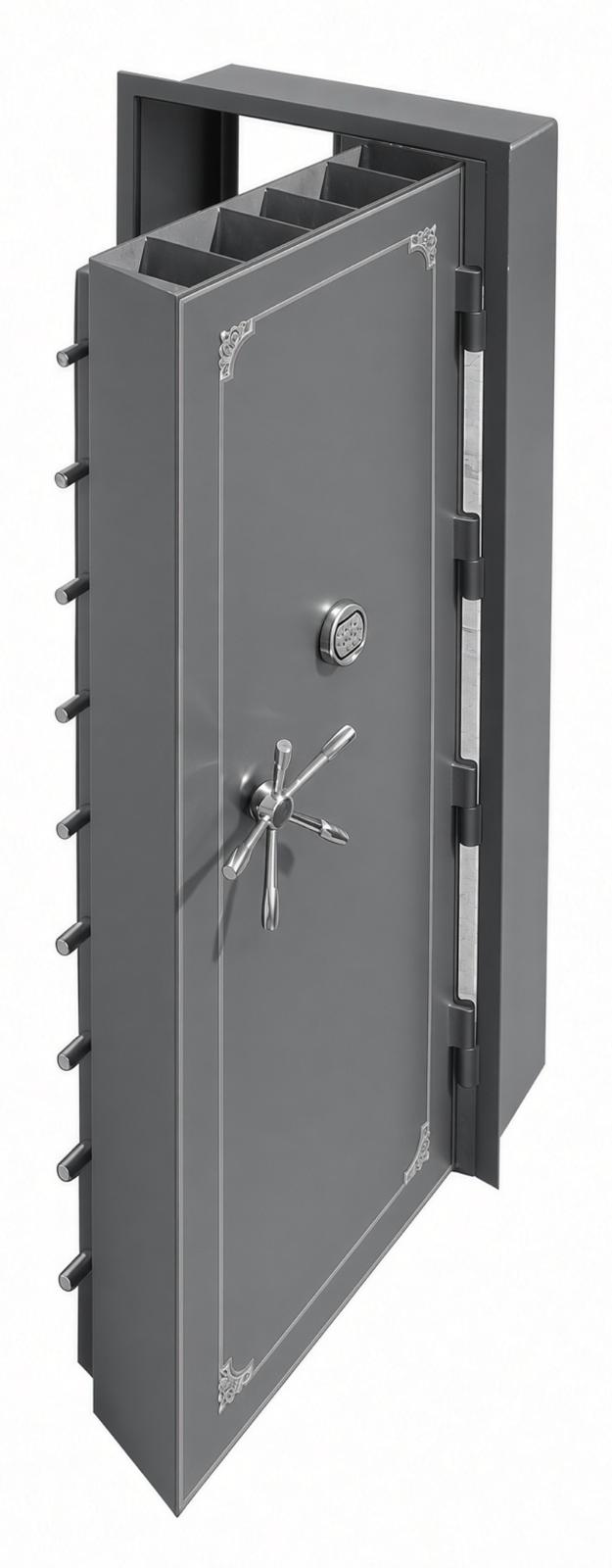

THE TANKHEADULTIMATE BALLIISTIC DOOR

Heaviest, Most Fireproof Residential Vault Door in U.S. History

If you want blast protection, mega-fireproofing and a 12" thick vault door that is almost impossible to cut through once filled with concrete, get the Tank Vault.

Ultimate Ballistic Door & BLAST DOOR - 3000LBS 80"x40"x15" - $7795 80"x50"x15" - $8795 NEW - 6000 Degree Concrete fireproofing - 4 x more fire resistant than drywall 6" Step System Door - 15" Overall thickness 1" Steel Bolt Protectors - Commercial Pry- resistance Ultimate Ballistic Door - Concrete-Filled Front Cavity 6000 Degree Concrete Fire-Proofing - 4 Times More Fire resistant than drywall 1500lbs Empty - 2800 Filled with Concrete 4 U-Shaped Blast Resistors in Door Blast Door - Accordion Compress Structure 2 Palusol® Expand Gaskets - Step Frame 1" Hardplate -- 4 - 1" Thick Hinges 1/2" Thick Steel Frame S & G Group I Lock w/Key 4 Barrel Spring Relocker - 5" x 1" Steel Internal Release - 18 Bolt System Life Warranty - Fire & Lock Texas Tech Certified Storm Door Bullet-Proof Door & INWARD SWING Available

TankHead Blast Door - 4 HR Fire
1" Solid Steel Front Plate

TankHead Blast Door

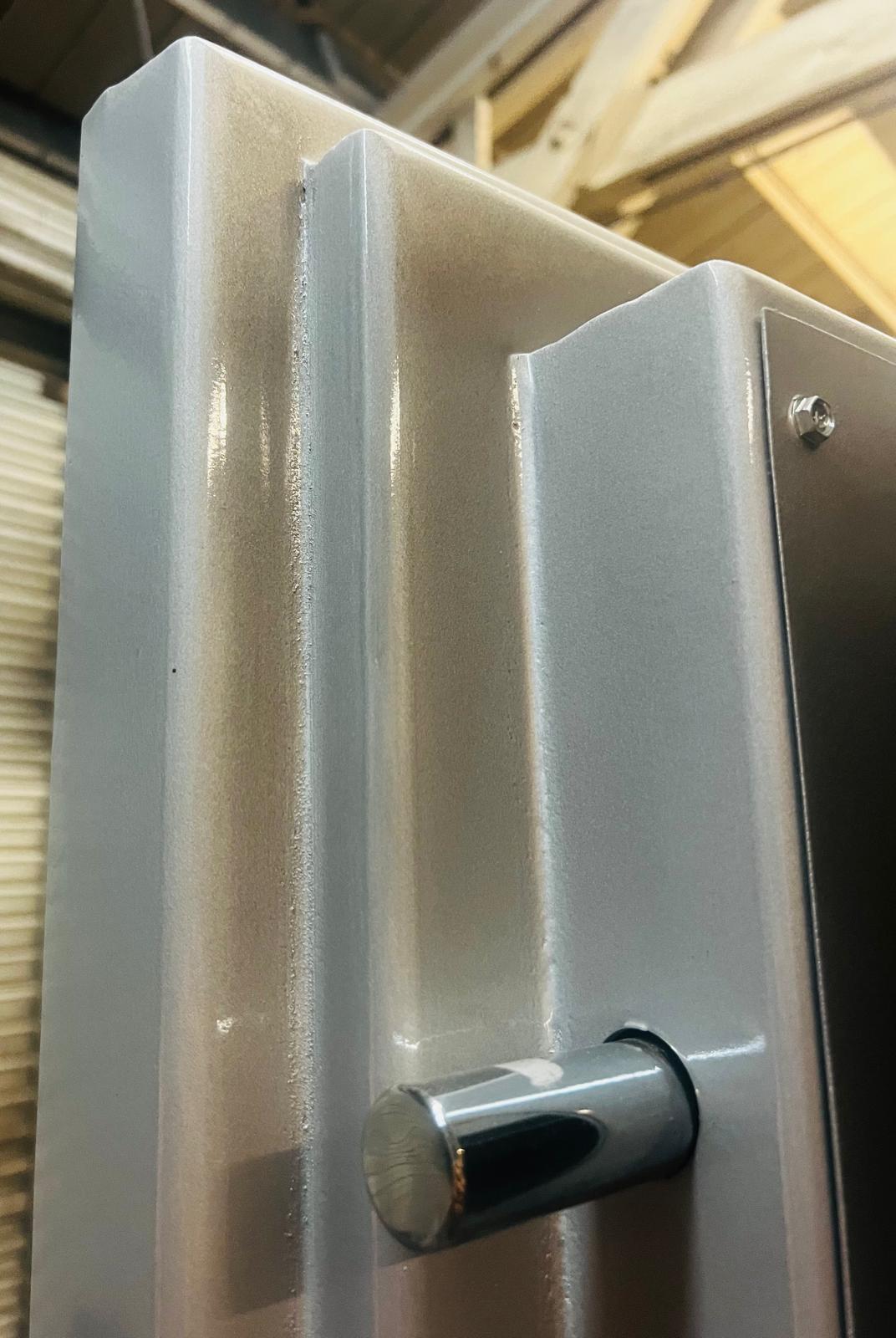

8" Step System Door - 15" Overall thickness

TankHead Blast Door

Pour in place door frame

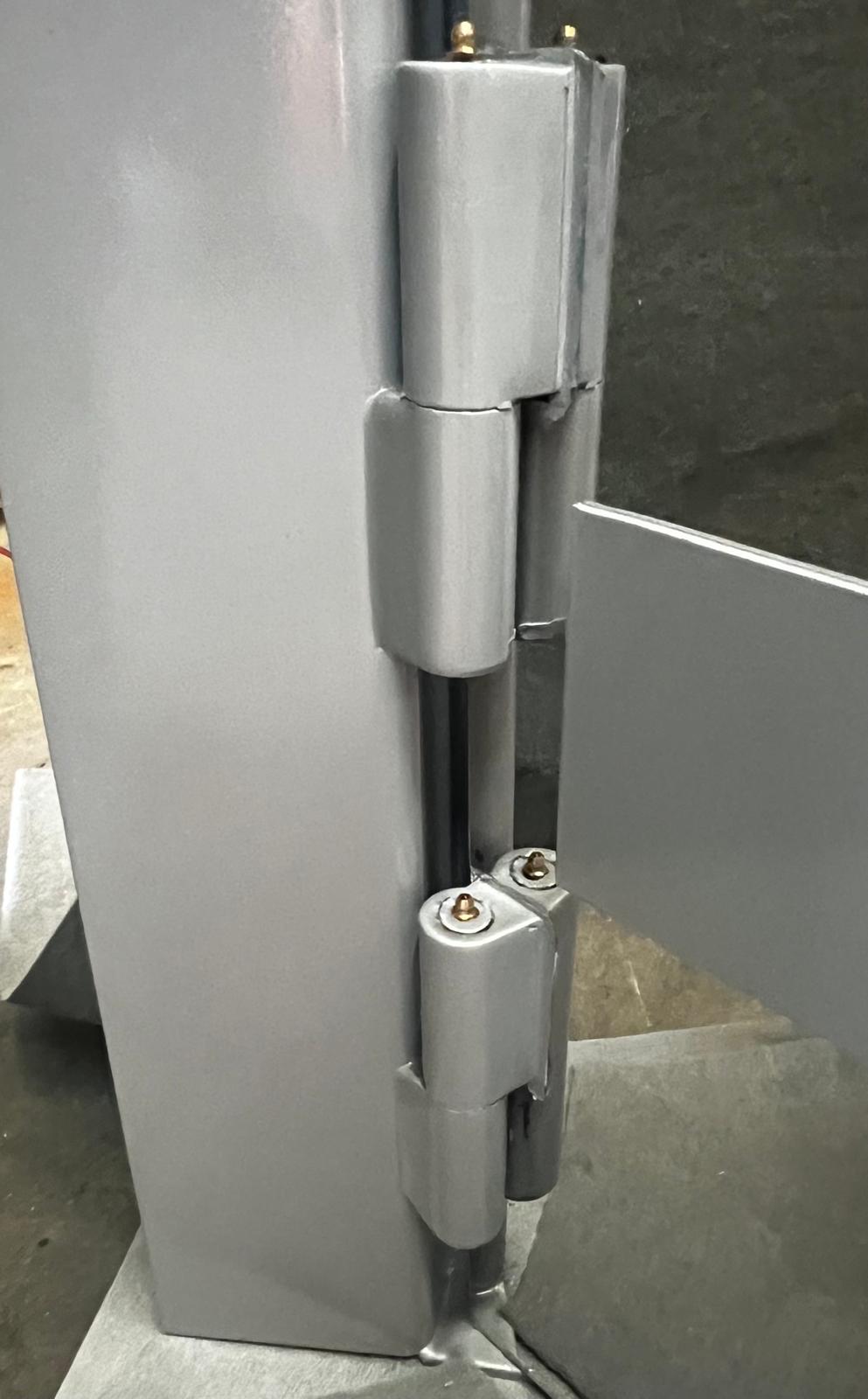

Blast Door hinge system

Click on thumbnail images to enlarge.

SHIPPING CONTAINER SAFE ROOM
Includes Tactical Interior & Vault Door
 7' x 8' x 20' - $28,950
7' x 8' x 40' - $42,550


VAULT ROOM DISGUISED AS SHED
Tactical Interior & Vault Room
Call for Pricing - 800 266-7150

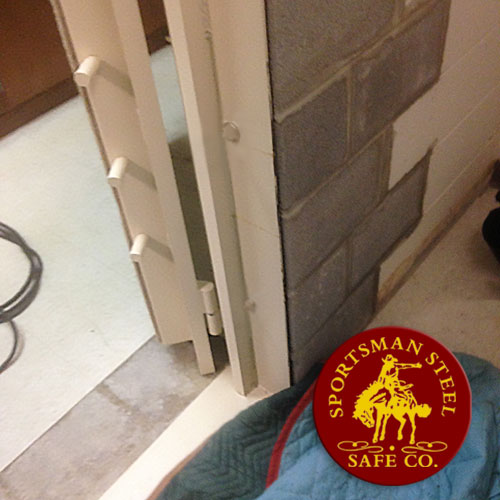

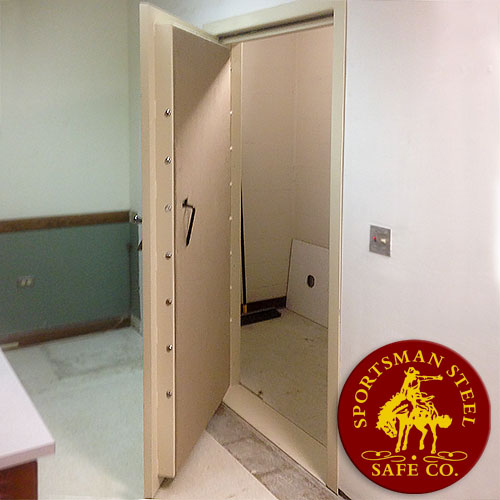

Vault Door - Back Trim Flange

Sportsman Vaults offers customers trim pieces that cosmetically finishes off your frame on the inside of your vault. These trim kits can be painted in eight colors and four wood finishes. - $349

Click image to enlarge.

Click image to enlarge.

Click image to enlarge.

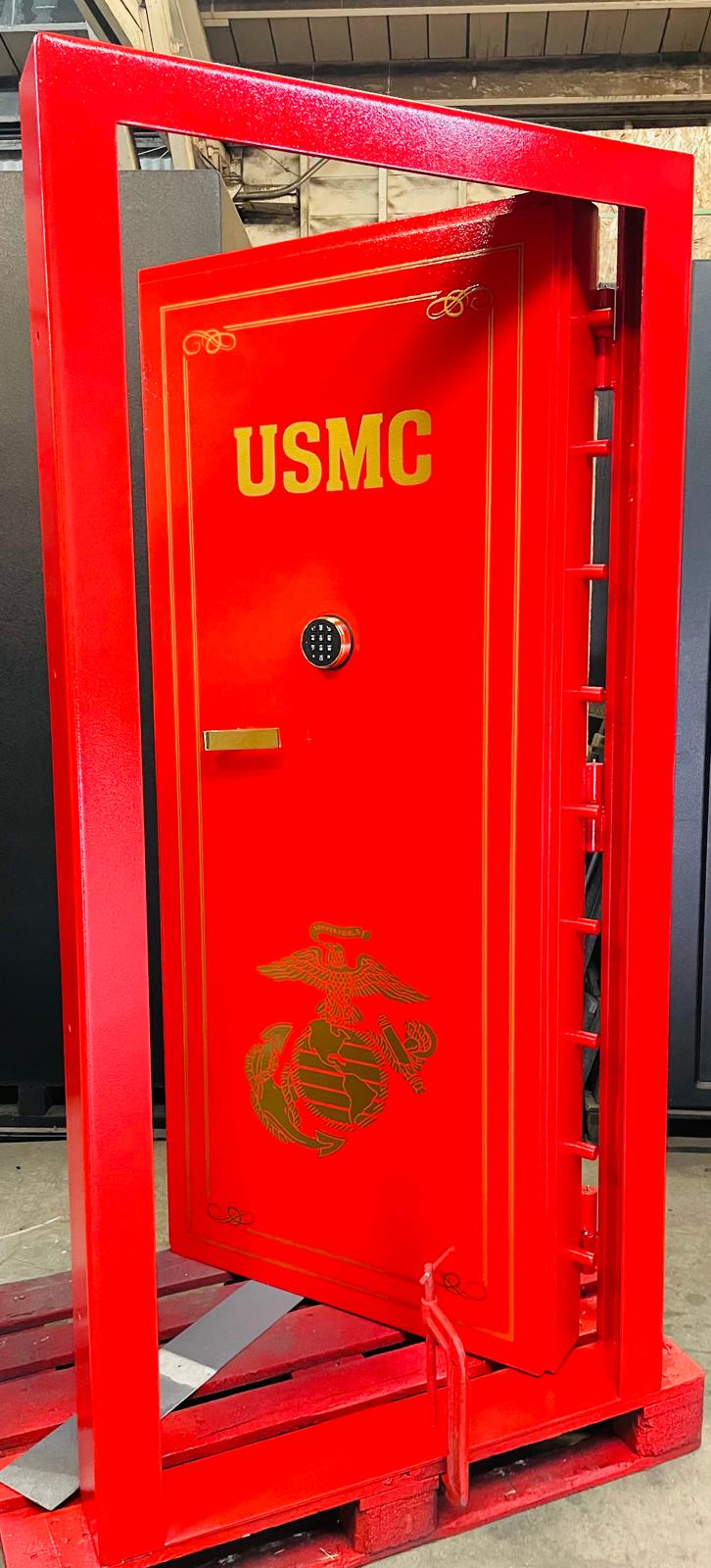

GIBRALTARVAULT DOORS

1 HOUR TORCH & GRIND CERTIFICATION
STAINLESS STEEL & BULLET-RESISTANT STEEL
80"x 32" x 10" - $8395
80"x 42" x 10" - $9395
80"x 52" x 10" - $10,495

Our Gibraltar Vault Door passed a 1 HR torch & grind test & ballistic test. It's constructed from a proprietary matrix of Stainless Steel & AR-500 ballistic grade steel. Our test consisted of one hour of grinding & attempted torch penetration. In two separate tests, we passed. The Gibraltar's bullet-resistant construction also stopped every round we fired at this super door. Video of test available upon request. Call our vault door experts to learn more about this revolutionary bulletproof vault door.

• 4" Step Door - 2.5 HR Fire
• 1/2" AR-500 Steel - 1/4" Stainless Steel
• 6000 Degree Concrete Fireproofing
• 3/4" Steel Pry-Resistant Frame
• 1" Chest Plate in Vital Cut Area
• 4 Barrel Relockers & 18 Bolt System
• Semi-Gloss Finish - 8 Colors

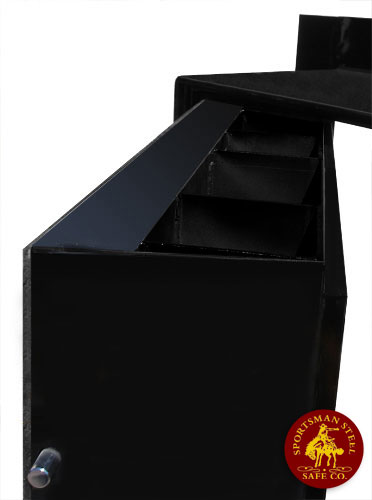

• 4" Double Steel Door - Proprietary Blast-
  Chamber Construction for Concrete-Fill

8" Thick Door

4" Step Door

Stainless Steel & AR-500

Old Vault Aesthetics

Call Us For a Quote - 1-800-266-7150

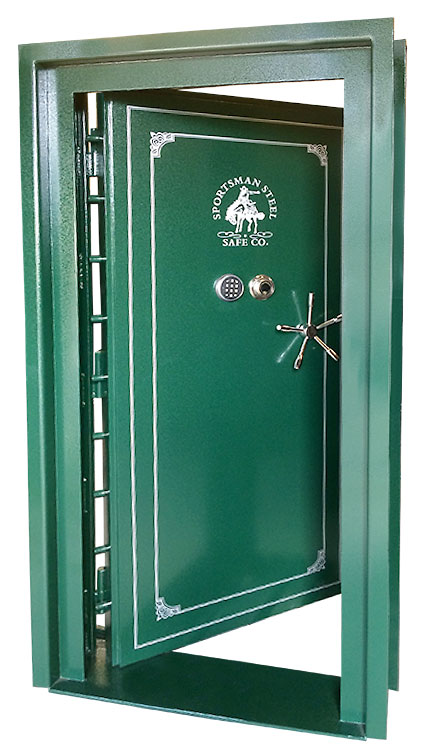

PROTECTOR VAULT DOORS

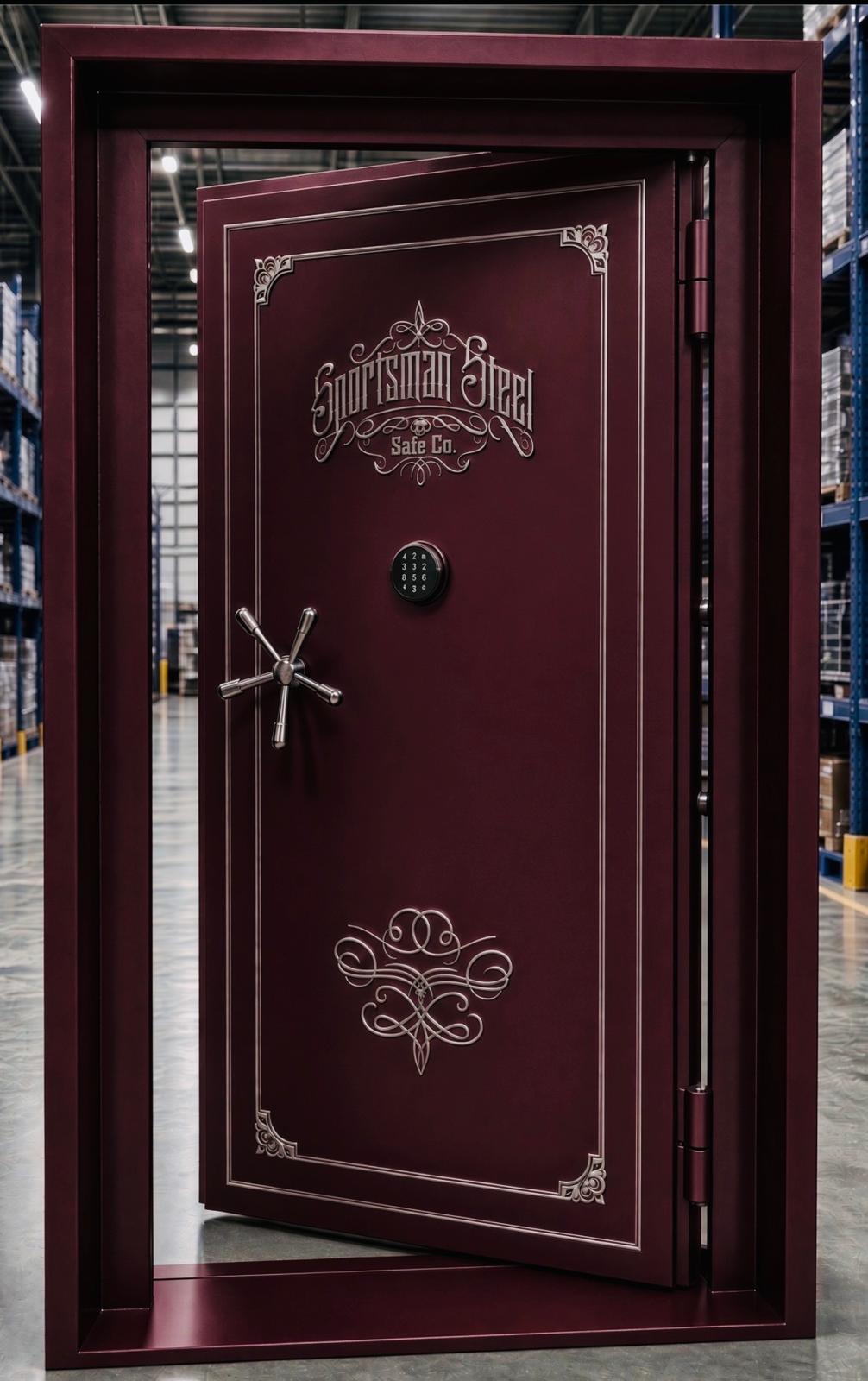

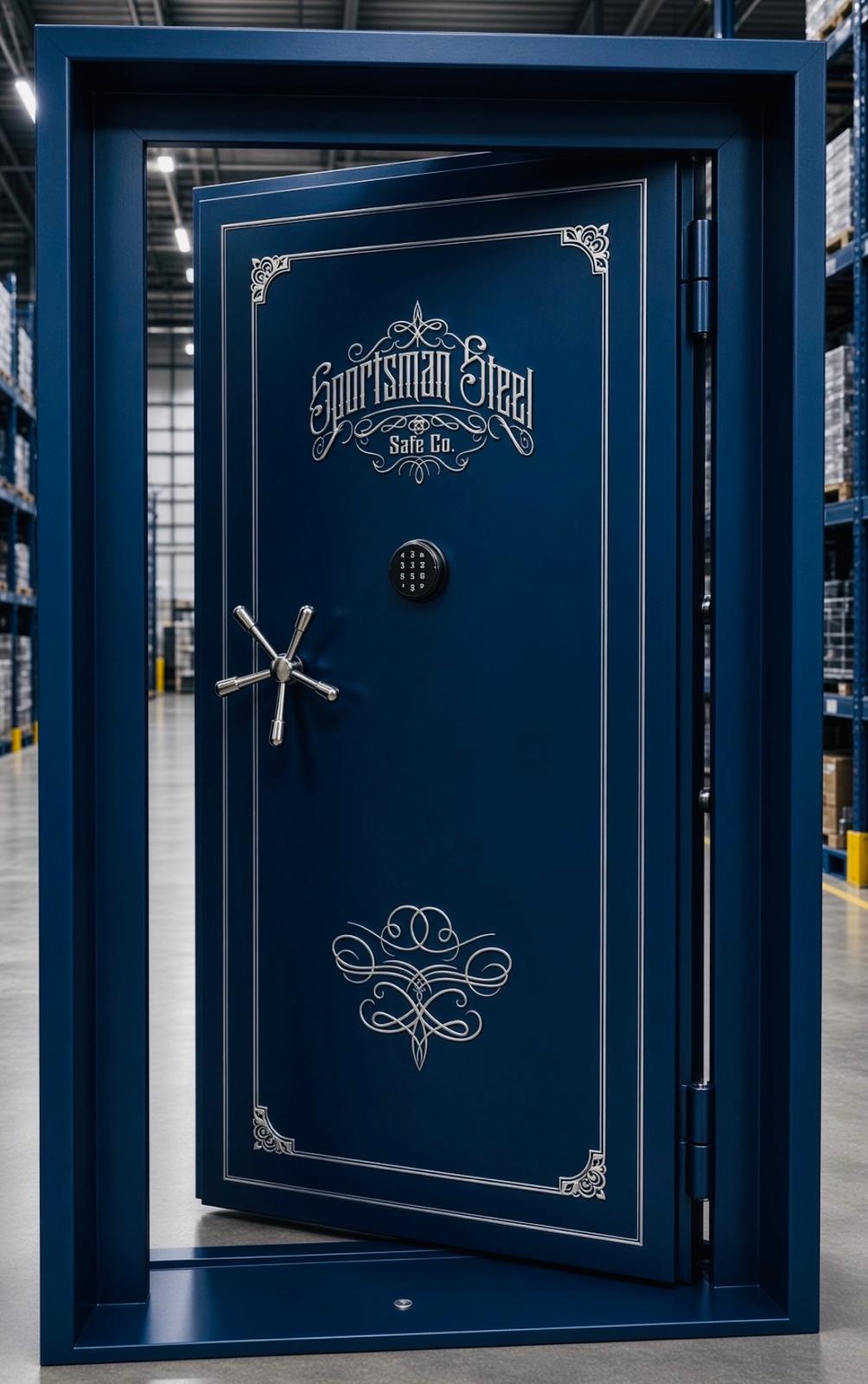

Model	Dimensions (inches)	FIRE INSULATION	Door Thickness	Ship Weight (lbs.)	Price

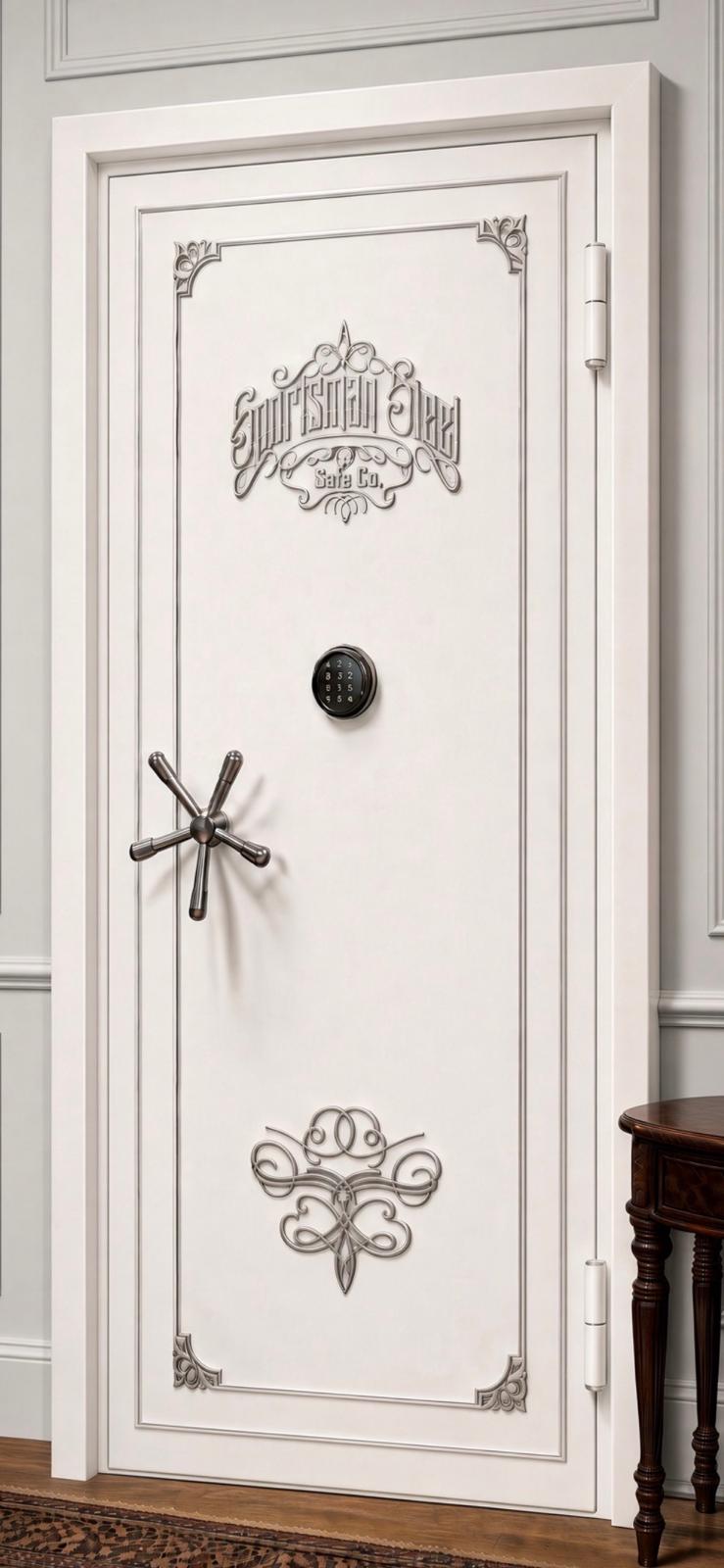

P-2	80 x 30 x 8	6000 DEG. CONCRETE FIREPROOFING	1.75" Door Armory Door	700 lbs.	$3795

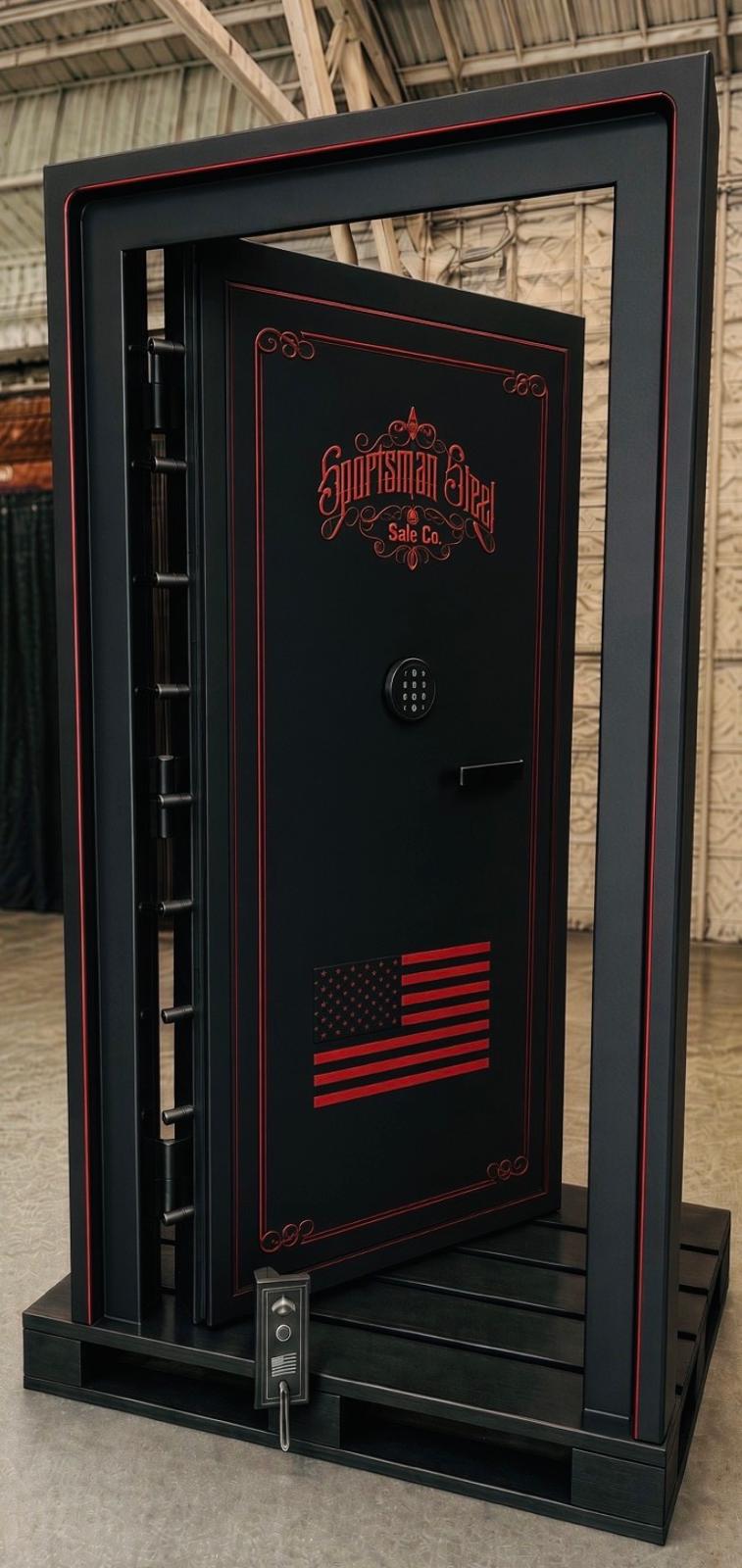

P-3	80 x 30 x 8	6000 DEG. CONCRETE FIREPROOFING	2" Step Crown Door	870 lbs.	$4295

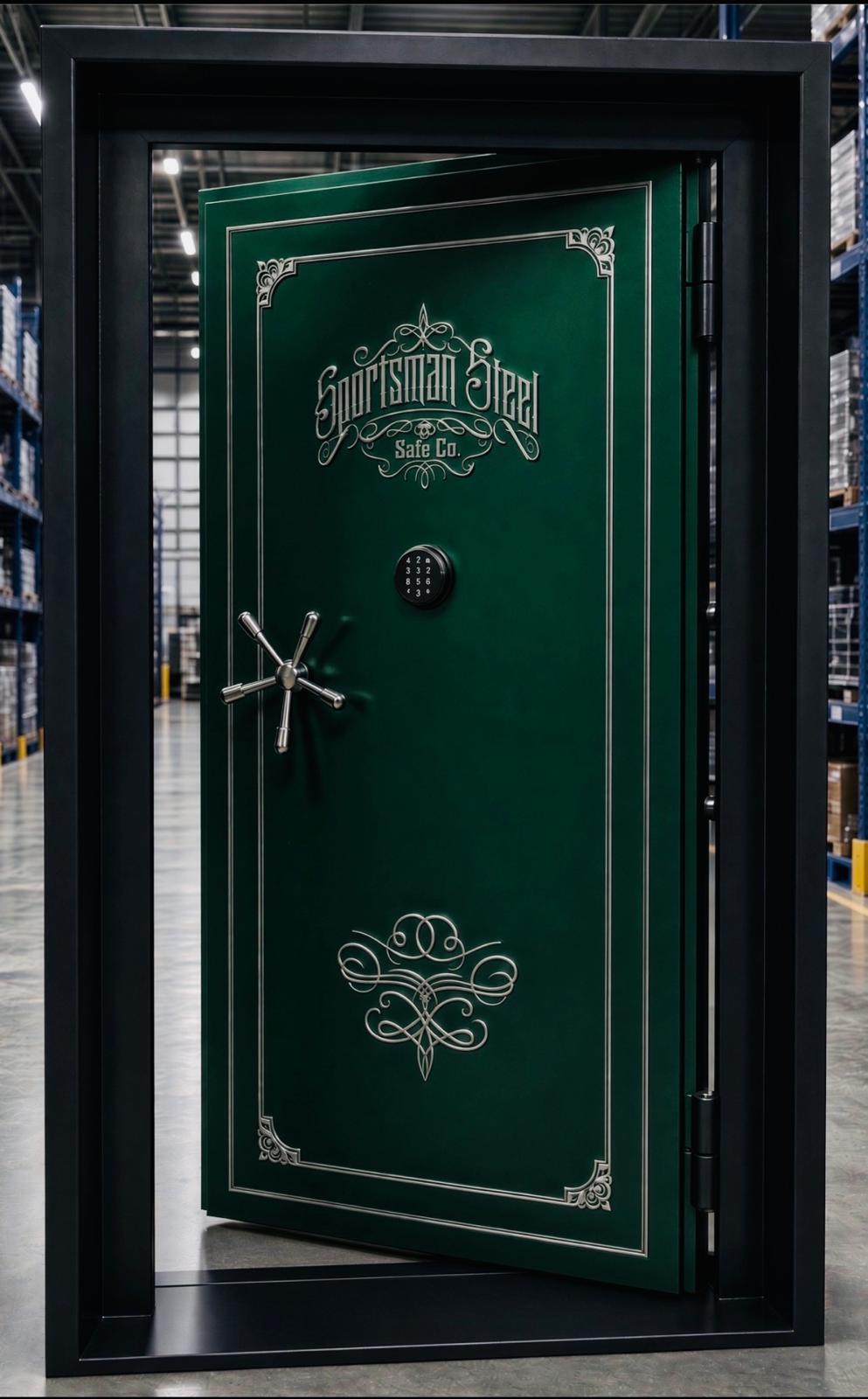

P-4	80 x 30 x 8	6000 DEG. CONCRETE FIREPROOFING	1/2" Steel Phantom Door	1375 lbs.	$5395
P-5	80 x 30 x 8	6000 DEG. CONCRETE FIREPROOFING	1" Solid Steel Federal Door	2500 lbs.	$7695

SUPER-WIDE VAULT DOORS
Model	Dimensions (inches)	Wall Thickness	Door Thickness	Ship Weight (lbs.)	Price
S-2	80 x 36 x 8	6" to 12"	1.75" Comp Armory Door	960 lbs.	$4095
S-3	80 x 36 x 8	6" to 12"	2" Step Crown Door	1050 lbs.	$4795
S-4	80 x 36 x 8	6" to 12"	1/2" Steel Phantom Door	1590 lbs.	$5995
S-5	80 x 36 x 8	6" to 12"	1" Solid Steel Federal Door	3400 lbs.	$8795

BUYING A VAULT DOOR MADE EASY

 Getting the best vault door doesn't have to complicated. Simply, call us and we'll explain everything you need to know about installation, price and quality. We even do an industry-wide price comparison so you know you're getting the best deal on your vault door.

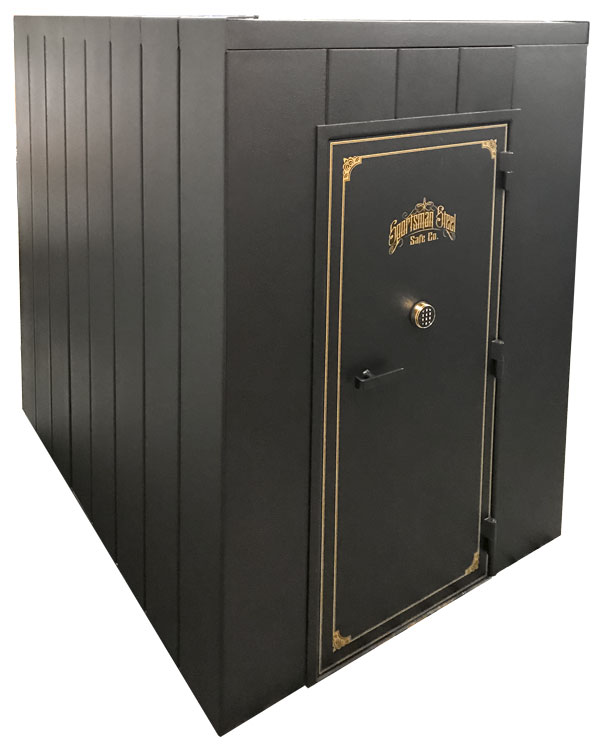

Modular Vault Room
Convert Your Closet into a Walk-In Gun Vault
7' x 8' x 8' - $22,995

Converting a closet or extra room into a fireproof gun room is the latest craze. Why buy a large gun safe for big bucks when you can get create a walk-in gun vault for the same cost. Easy-to-install 1/4" thick - 12" wide panels allow this room to be bolted together in one day. Ballistic grade steel & custom sizes are available. Contact us for pricing - 800-266-7150

HATCH DOOR LIFTS - ADD ADDITIONAL $695



Custom Frames Available - Call 800-266-7150



NEW - Nuclear, Biological, Chemical Sealing System - It's Airtight!

Our new N.B.C. Compress Seals make your vault room Nuclear, Biological & Chemical resistant. We include N.B.C. seals on your 3" Step System Door and Frame. We also continuously weld every inch of your vault, frame & seams to make your vault door N.B.C. resistant. Continuous welds also run along your internal steel panels and atop your lock hole that connects your external lock to our internal mechanism. We can even include an NBC resistant "lunch pail" over your lock to make your complete locking system NBC resistant! - ONLY $1999 - $2499.

Call to talk to a Vault Expert: 800-266-7150

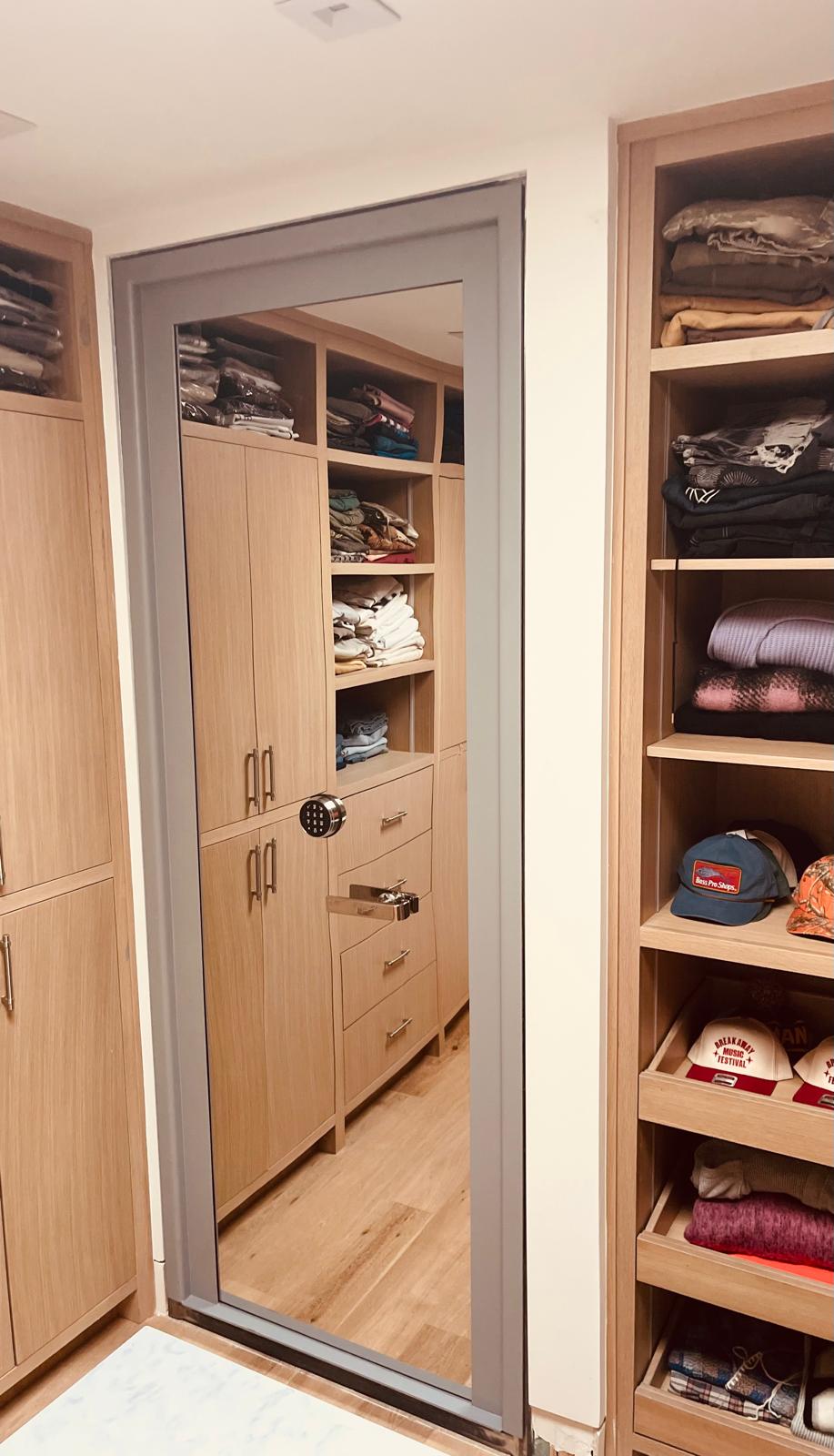

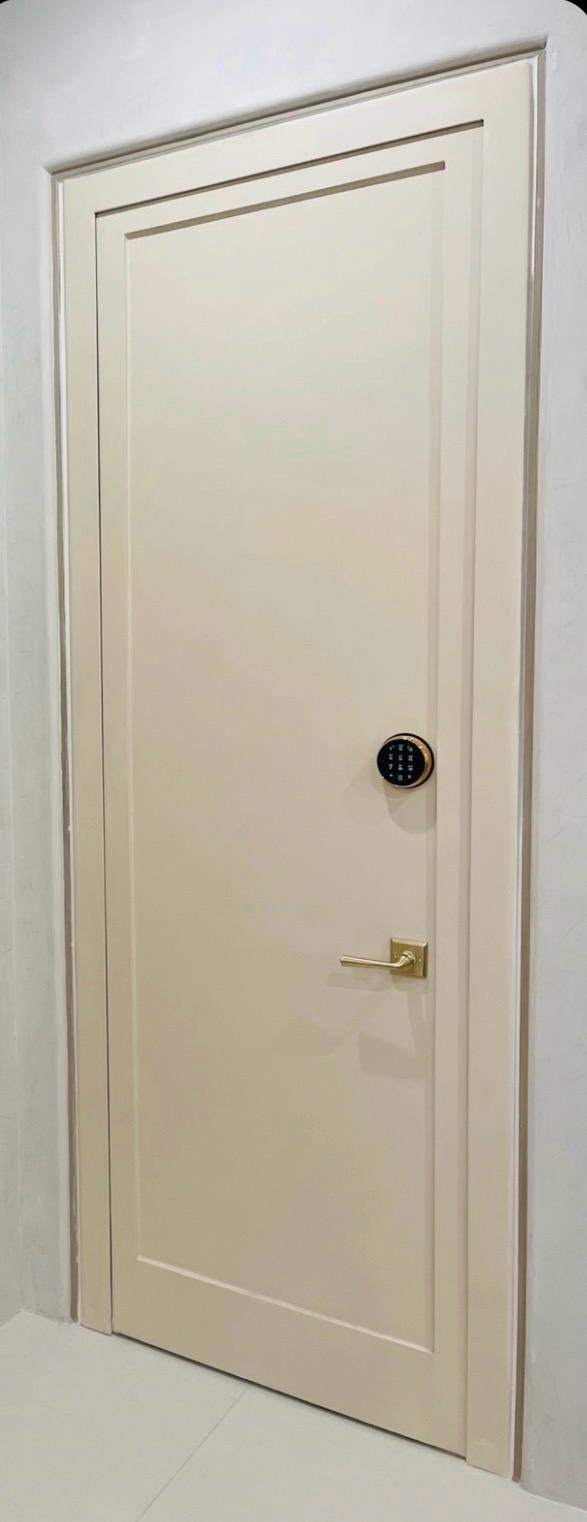

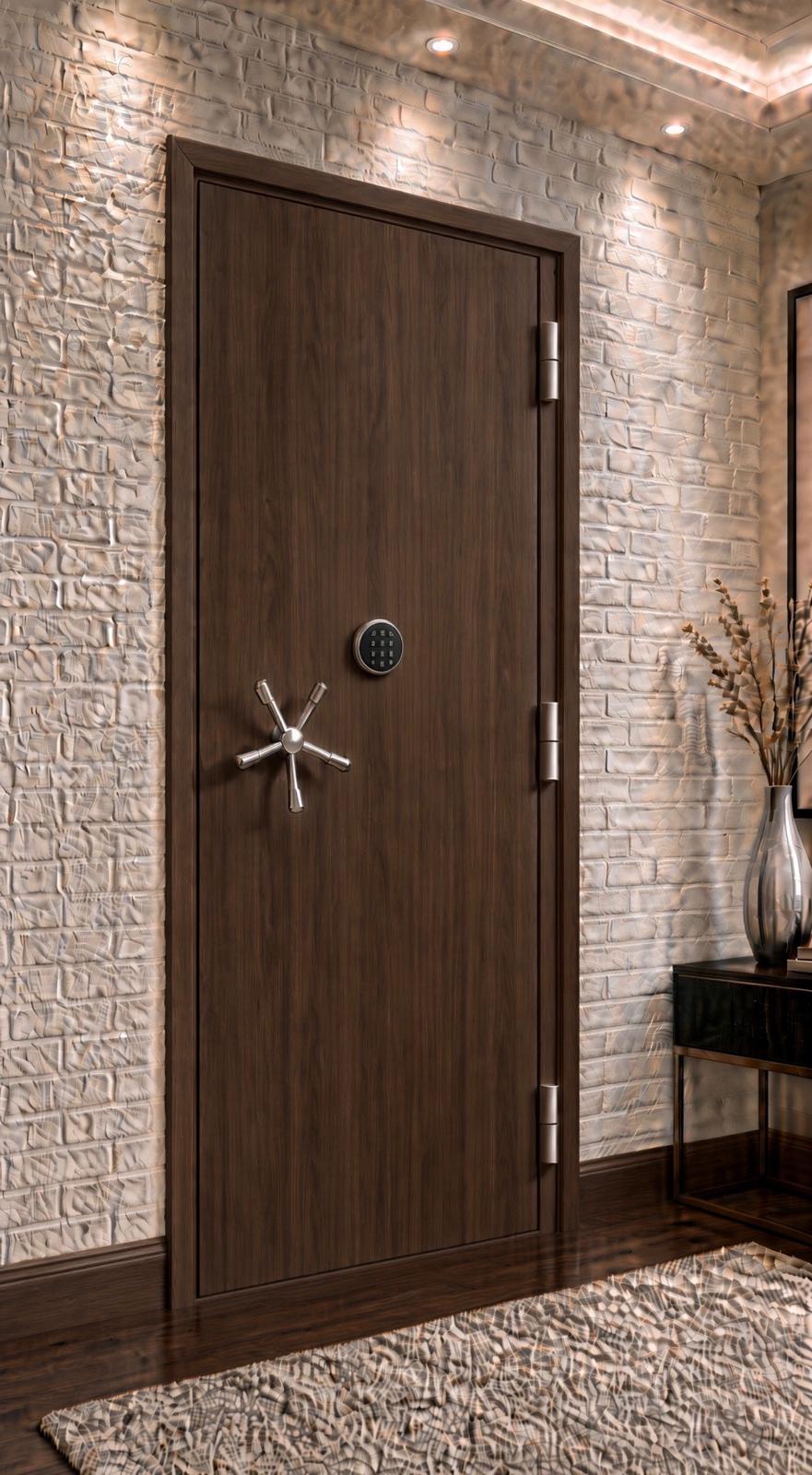

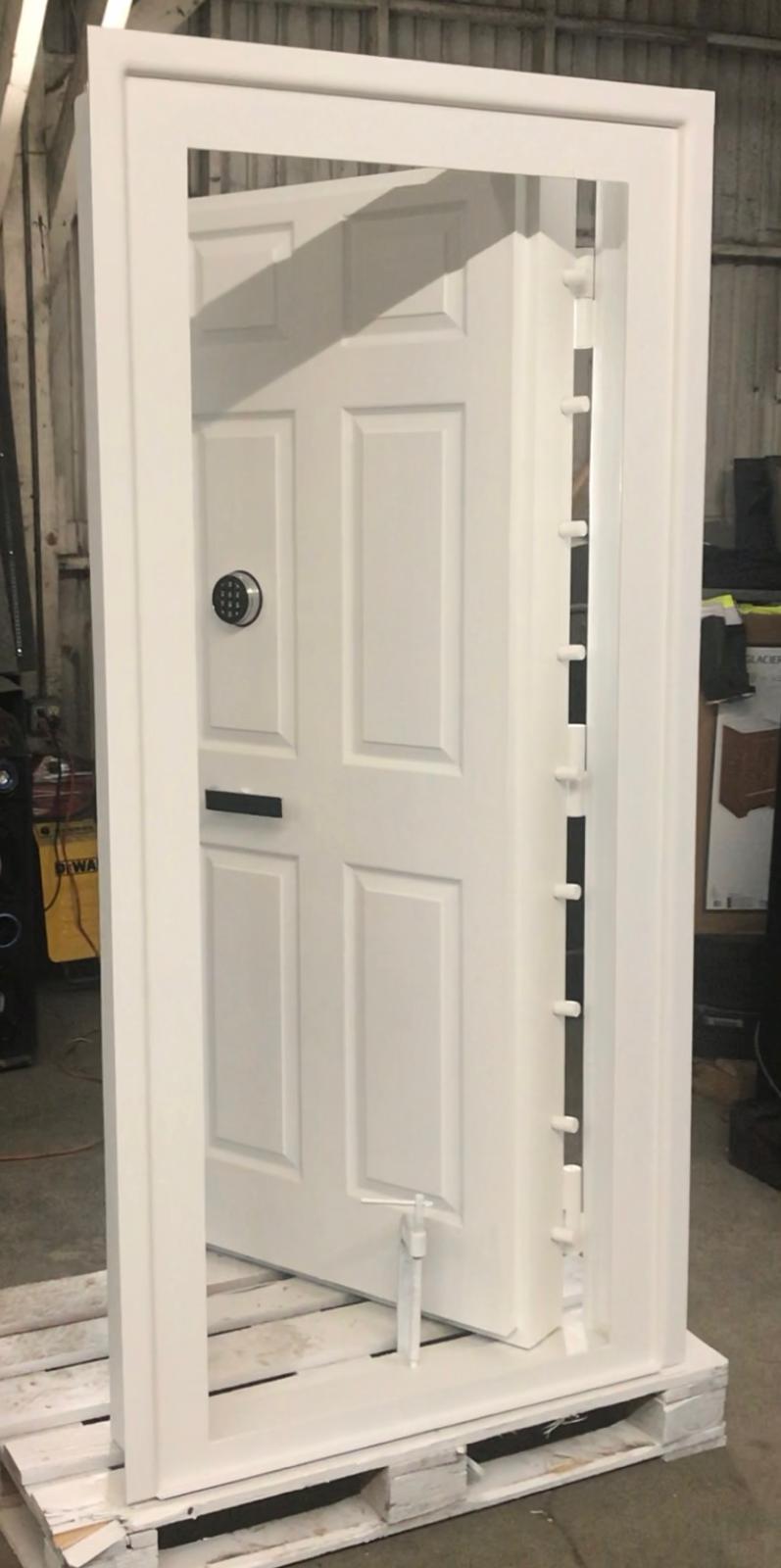

Hidden Vault Doors

Sportsman Steel Safes now creates Vault Doors for hidden rooms. These concealed vault doors are designed to have standard household doors installed in front of them. This will conceal your walk-in vault room completely. No one will know it exists.

Call us for a quote - CALL 1-800-266-7150

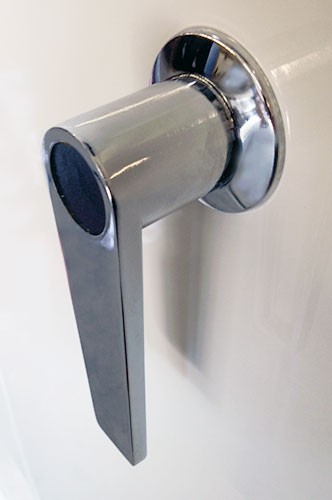

Low Profile Handle - Hidden Door Option.

NEW!12" Blast-Resistant Carriage Door

"Blast Door for FBI & U.S. Marines -- Quantico Training Facility"

Sportsman & Pentagon Vaults creates the first 100% Open-Access double door vault. With a triple tiered 3/8" steel frame and 10 solid 1" thick steel hinges, the Double Door vault has the strength to support twin doors weighing up to a ton. The non-partition double doors allows enough access to drive most government-issued vehicles and automobiles through. It's perfect for Nuclear-Biological Chemical rooms built above or below ground. Each door has five relocking devices and up to 20 locking bolts. Customers can add our 12" Blast-Resistant carriage door to absorb many blast levels. Your vault can have Porcupine System added: 12 - 1" thick - 5" long solid steel posts continuously welded along your frame so your vault can be directly tied to the rebar in your concrete-filled walls. Call us for a quote - 800 266-7150!!!

Custom Vault Doors and Commercial Vault Doors

Custom Vault Door - Encased in stone





CALL ABOUT CUSTOM SIZE VAULT DOORS

Sportsman can build your vault door to any size.
And since we're FACTORY DIRECT,
Our prices are up to 60% less than our competitors.

Call us to get a quote: 1-800-266-7150


We Ship Vault Doors Everywhere - Tax Free Most States

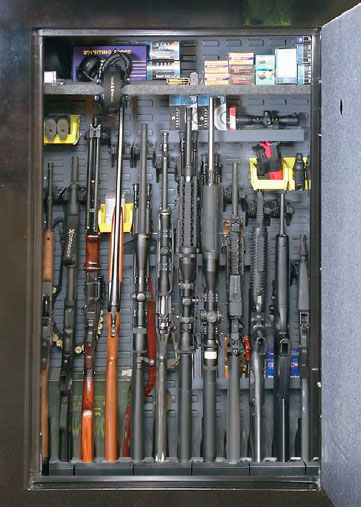

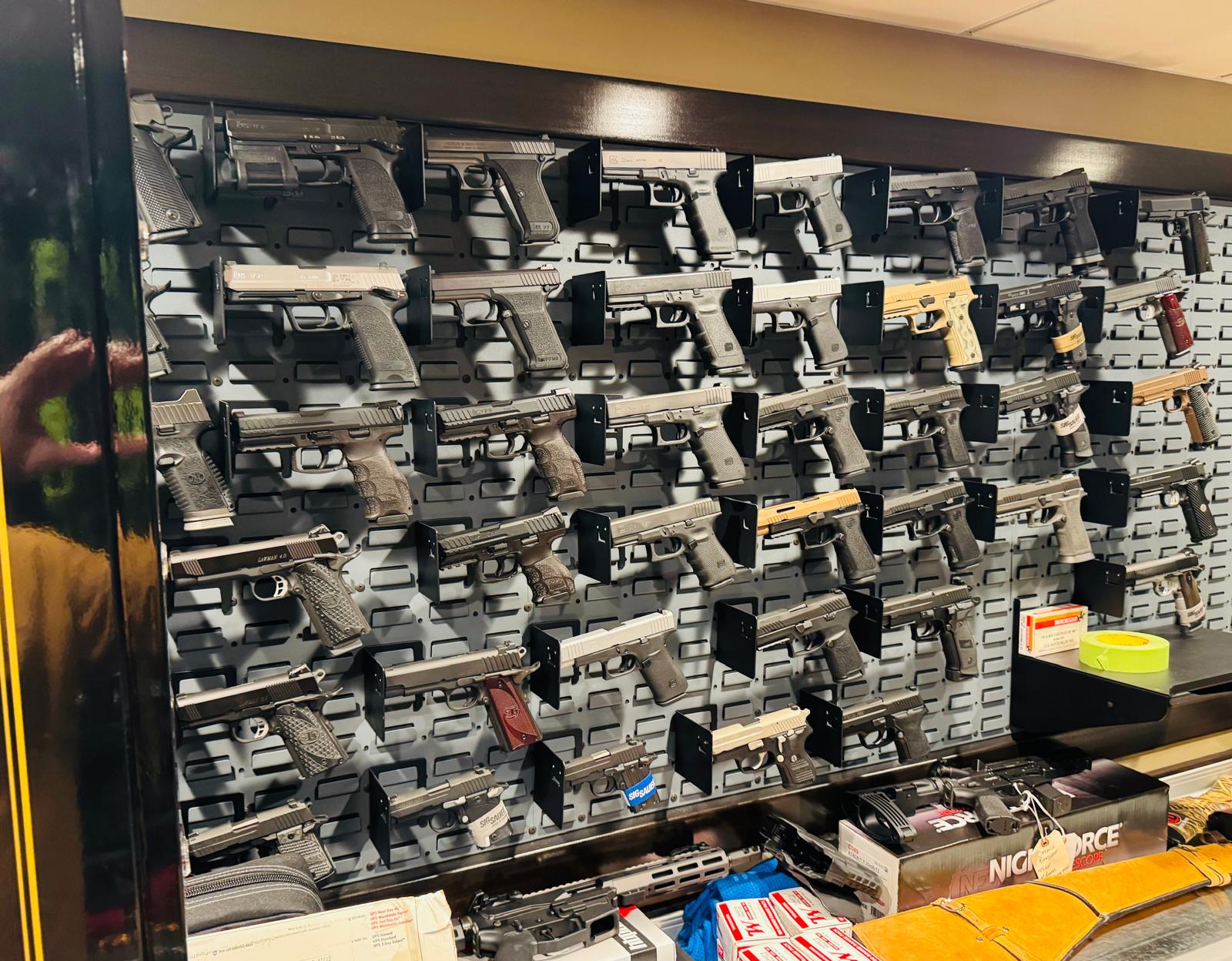

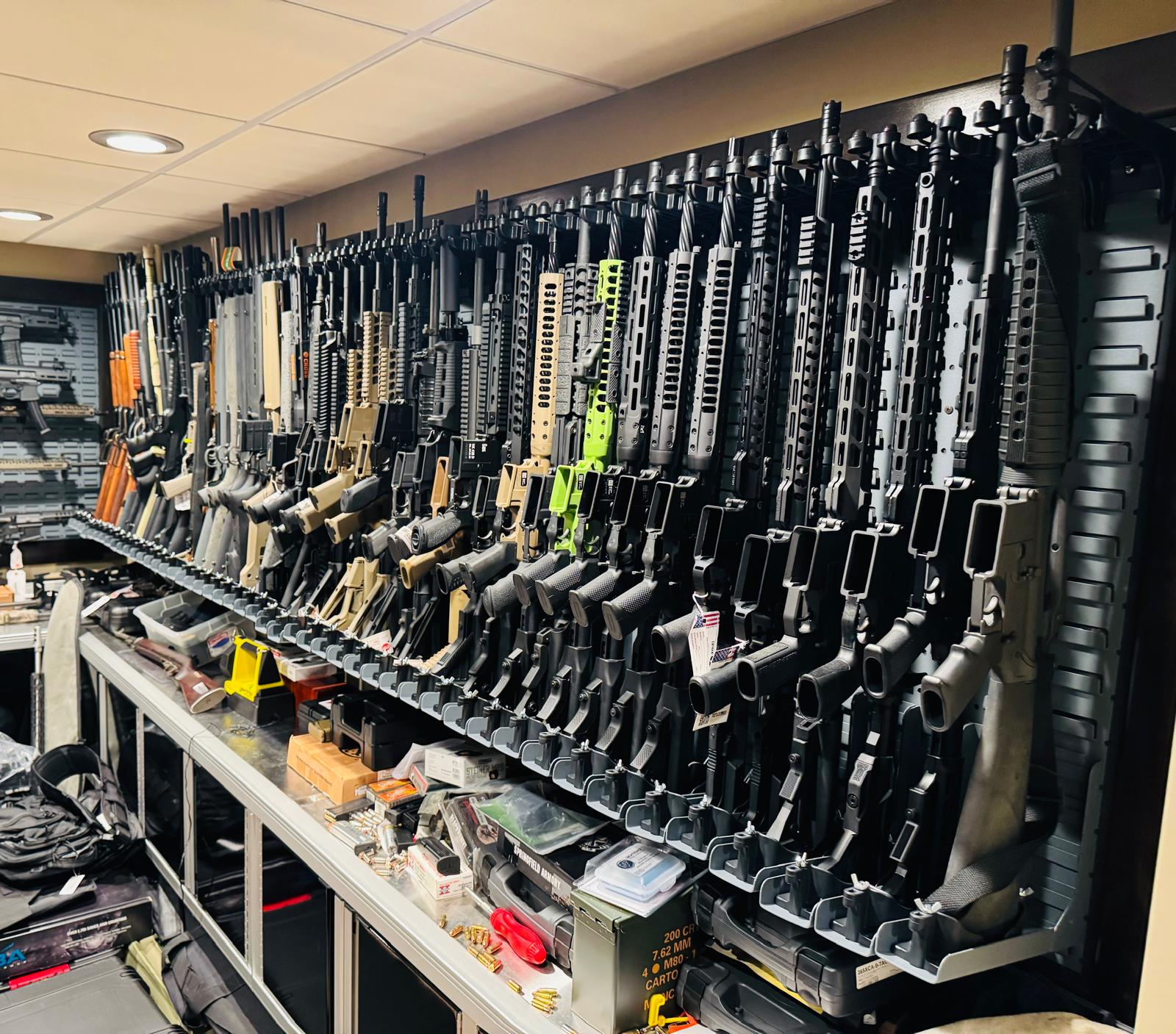

Tactical Vault Door Interiors

Custom Vault Doors any size

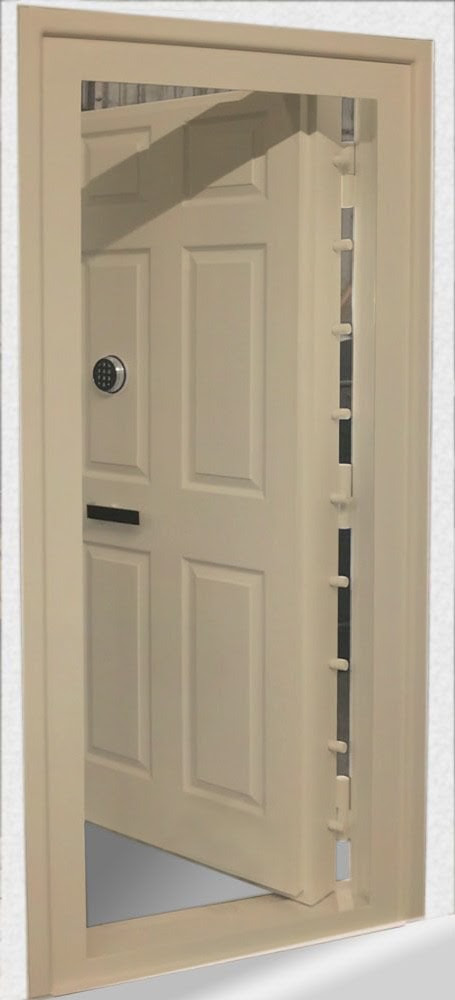

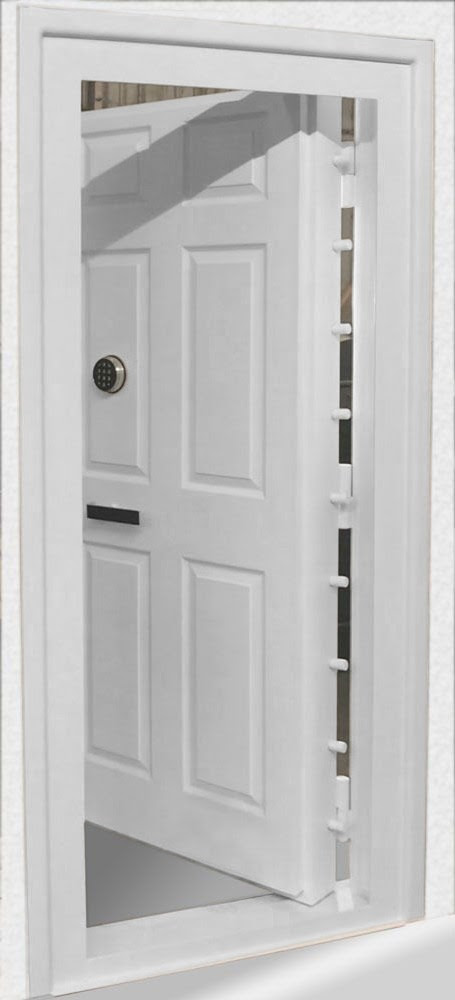

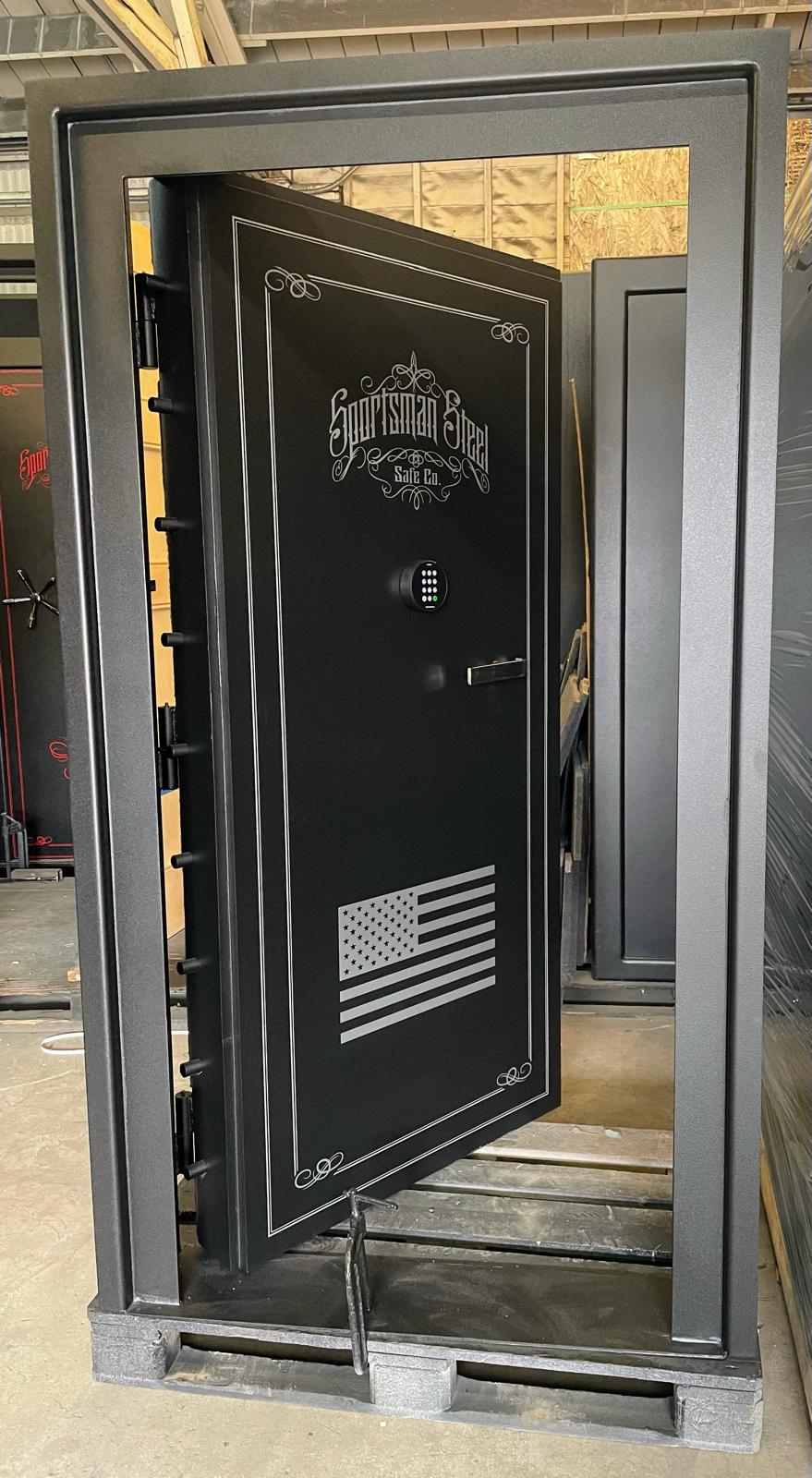

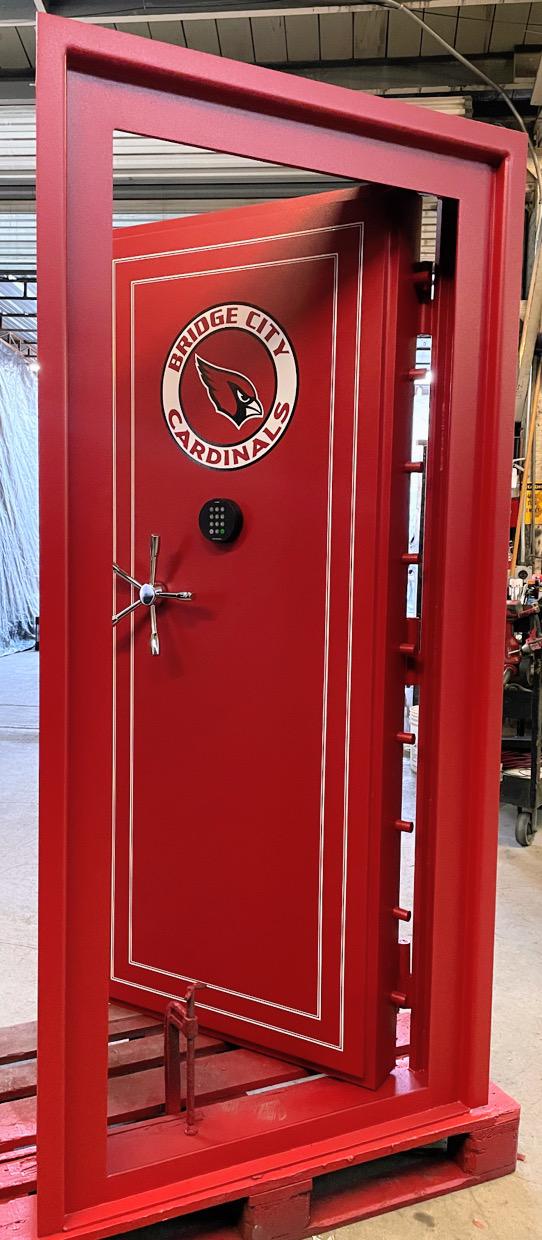

Custom Configurations with Inward or Outward Swinging Doors Available.

Our Vault Doors are Built with Quality and Pride in the USA

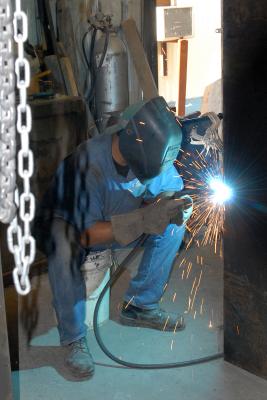

Sportsman certified welders go through rigorous training before constructing our double sealing doors. Each Armory Vault Door goes through a 13 point inspection which includes door seals, lock fit, precision relockers and insulation fit.

Custom Configurations
Call us with your special requirements for a free quote!
1-800-266-7150

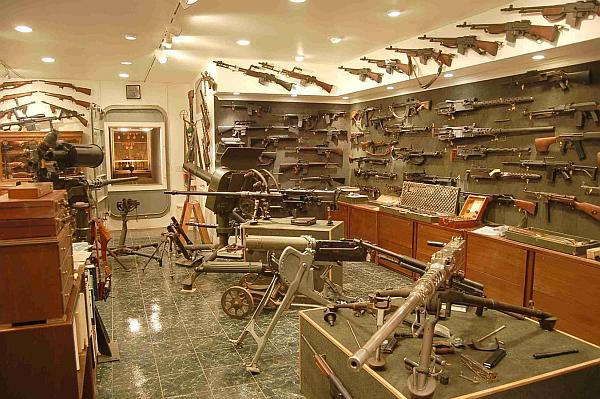

Charlton Heston's Vault Room (below)

We did not build this vault room, but take a look! Three, four, five hundred firearms. Old West single-actions, German & Spanish Shotguns, World War I & II sub-machine guns. With that many weapons, it's no wonder Charles needed a Walk-in Vault Room. But imagine owning this collection and coming home to all your weapons STOLEN. Protecting your guns IS EASY. Call us and we'll ship you a vault door for less than the cost of one good gun. 800-266-7150

Get a Quote on YOUR own dream vault room- CALL 1-800-266-7150!

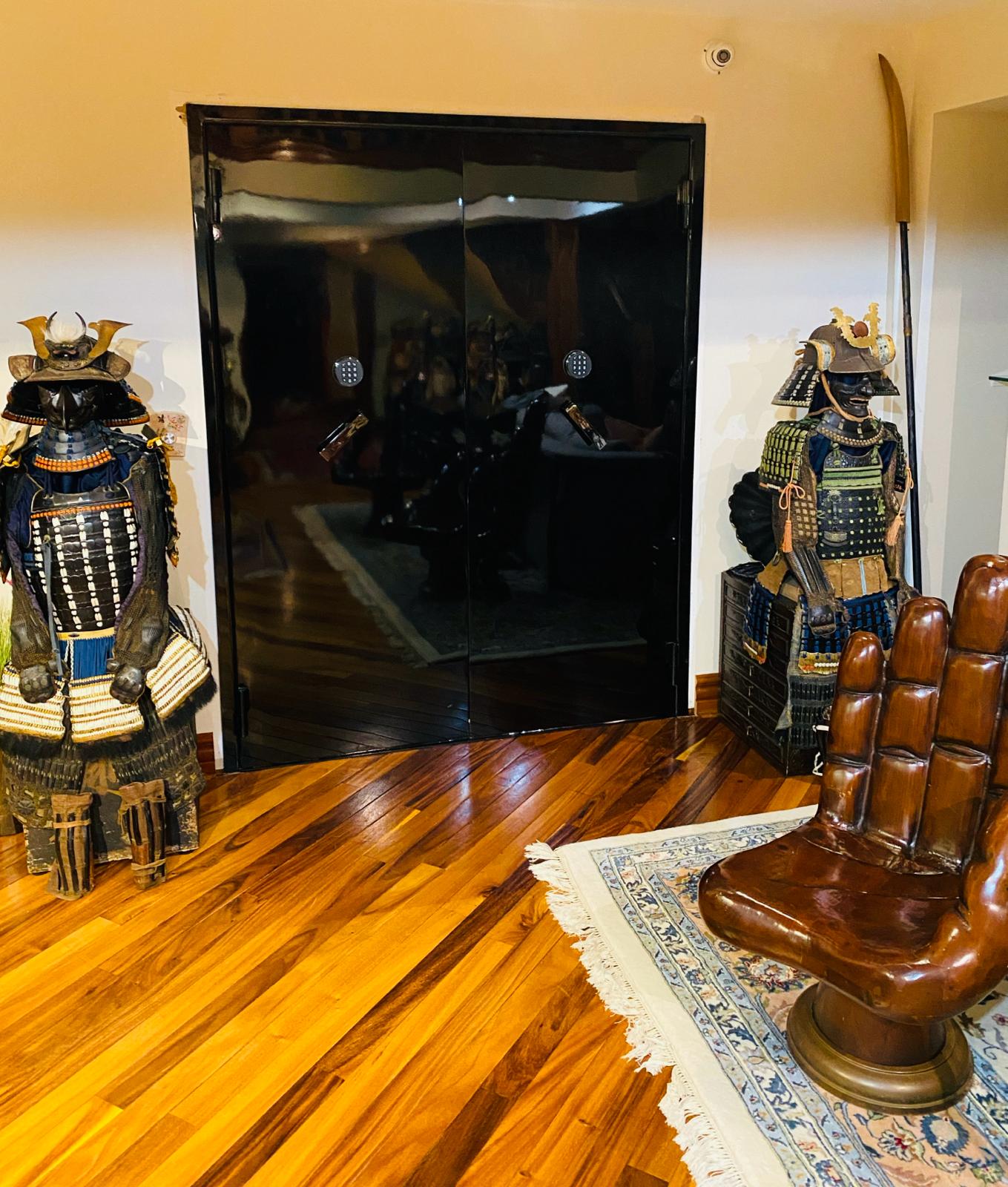

Custom Double Door Vault Doors

Over 42 Years Experience

Our clients have entrusted us to build their vault doors for a quarter century. And we've never had a vault door broken into! Our customers include the FBI, Santa Barbra PD, Harrah's Hotels, Laurie Rodkin ("Jeweler to the Stars"), muscle car builder Carroll Shelby, DOJ, U.S. DEPARTMENT OF Homeland Security, U.S. President's Secret Service, LAPD & Mirage Hotel.

Click to Meet Our Sportsman-Pentagon Team

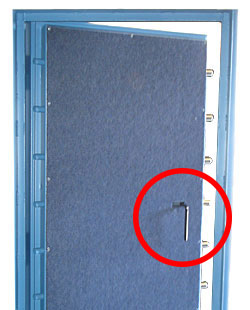

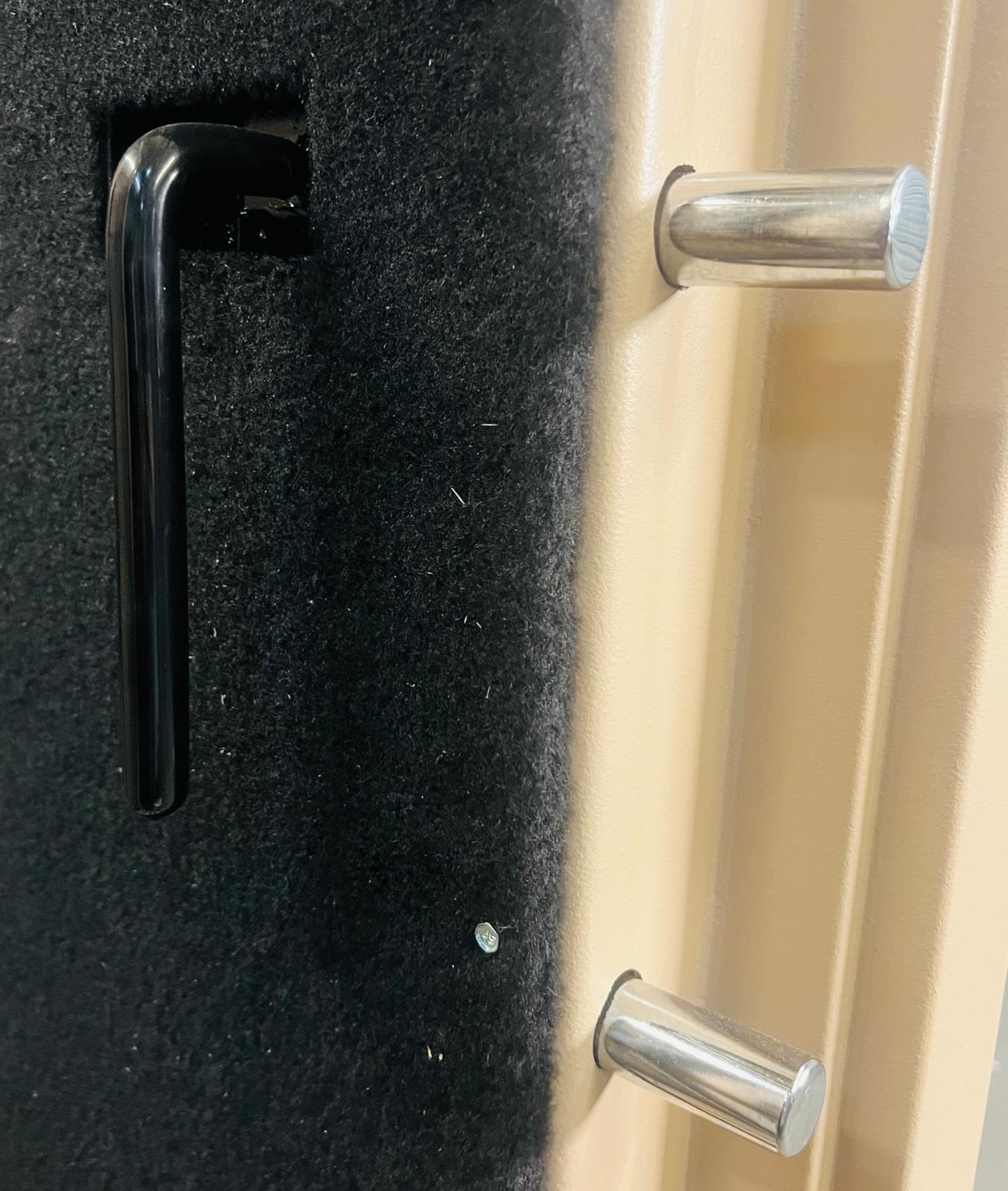

INTERNAL RELEASE

The Panic Room Option - Your Walk-In Vault Room can be made into a Panic Room. By installing a Fail-Proof Internal Release you can open and lock your vault door from the inside.

Your vault door's INTERNAL RELEASE HANDLE allows you to exit your vault in case you get locked in. This handle also allows you to lock your vault door from inside your room. The 3/8" thick steel handle is 6" long. It's welded to the internal bolt-work inside your door. When this handle is pulled up, it rotates the main locking bar inside your door and allows you to retract the bolts, thus allowing you to exit your room. No internal release handle has broken down in 42 years. NOTE: our vault door's back steel panel has screws, which gives you the option of "manually opening" your vault in case of an emergency. $295.00

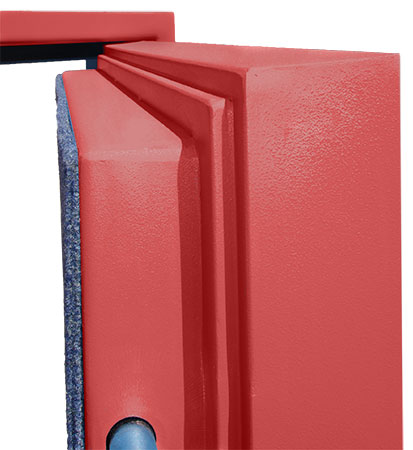

JIG SAW DOOR

Our Jig-Saw Doors are just like the doors found on $10,000 commercial safes. They're up to 3" thick and constructed with a reverse step-system on your door and frame. So when you close your door it fits together like a jig-saw, making your vault doors the most airtight in the industry!

And our Jig-Saw Door has two gaskets! One expandable gasket and one silicon hot air seal. This is crucial, because when a house catches fire, our competitors heat-activated gasket don't start expanding for eight minutes. This allows hot air in your safe. Not a Jig-Saw Door. When hot air passes your Palusol® expandable gasket, a second hot air seal stops the hot air, rerouting it over your expandable gasket a second time! This not only keeps heat out of your safe but helps expand your gasket twice as fast! This is the kind of technological inventiveness that keeps Sportsman Vault Doors a step ahead of the rest.

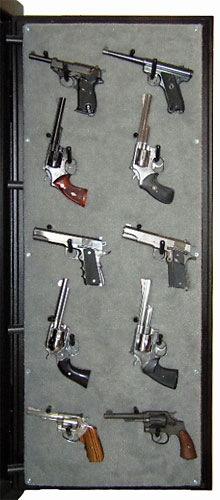

Pistol Storage on Your Door

Safe Secure Storage for your handguns. Save space. Store handguns on your door. Call for Quote - CALL 1-800-266-7150

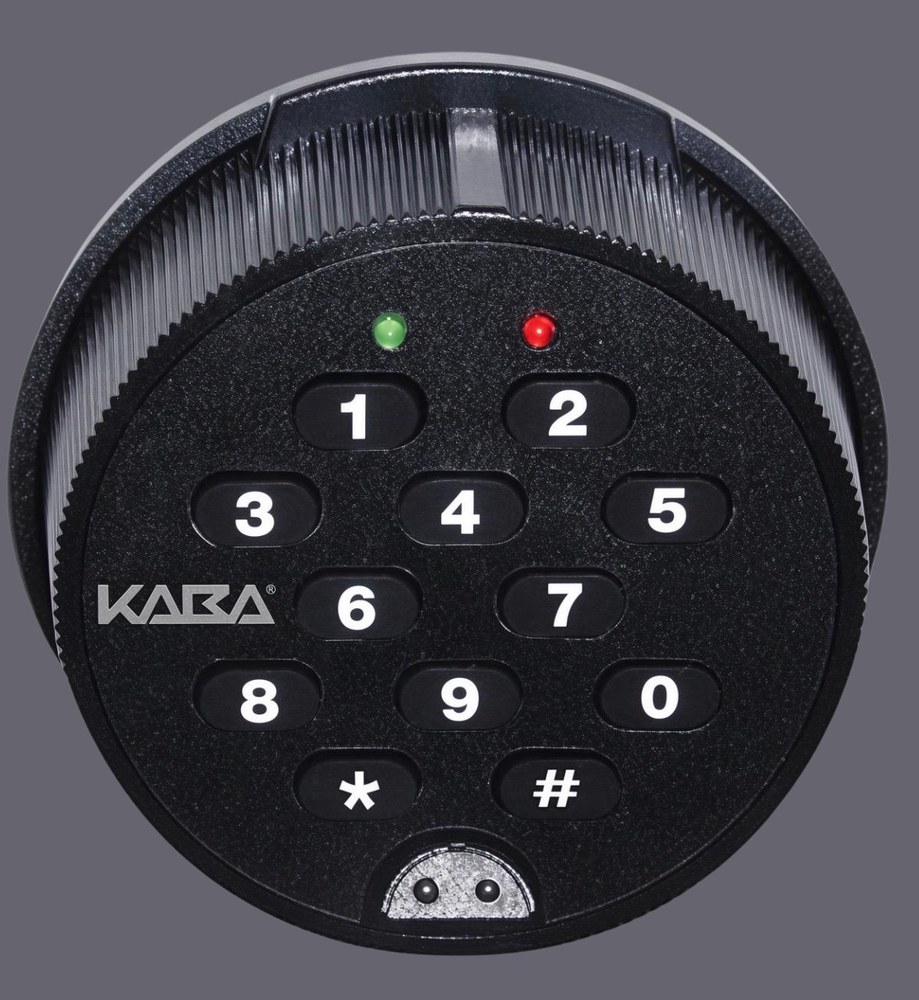

Lock Options - Click to enlarge.

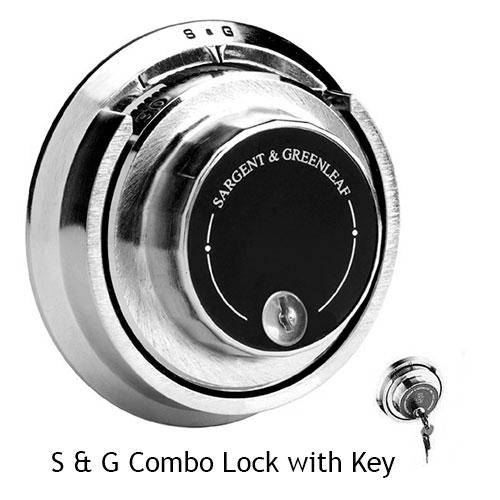

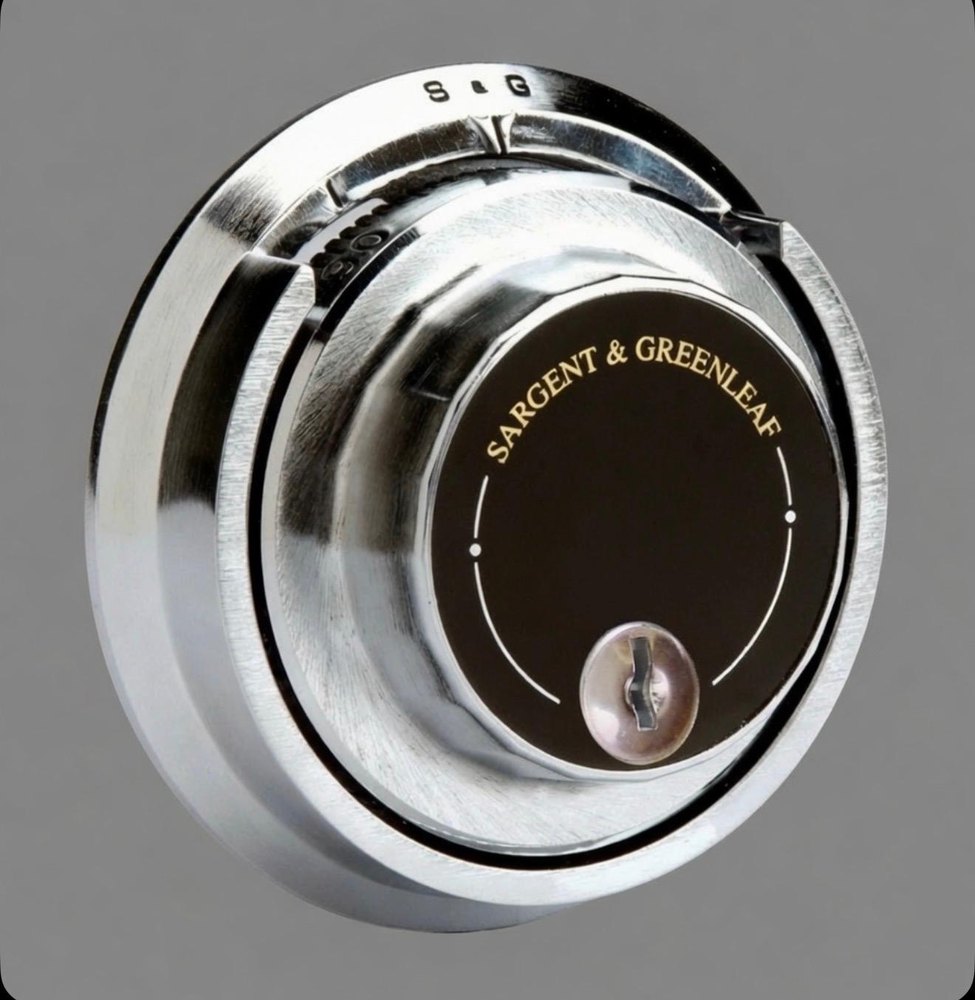

S & G Combo Lock w/ Key $79 - Life Warranty

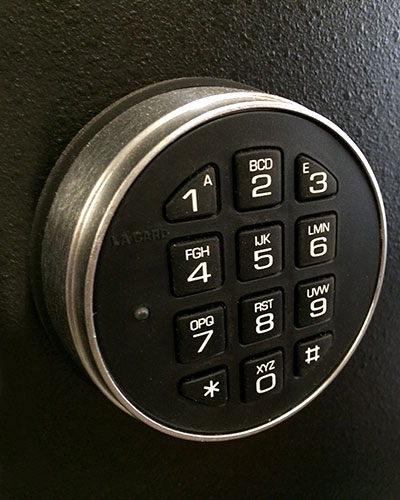

Commercial Grade - $250

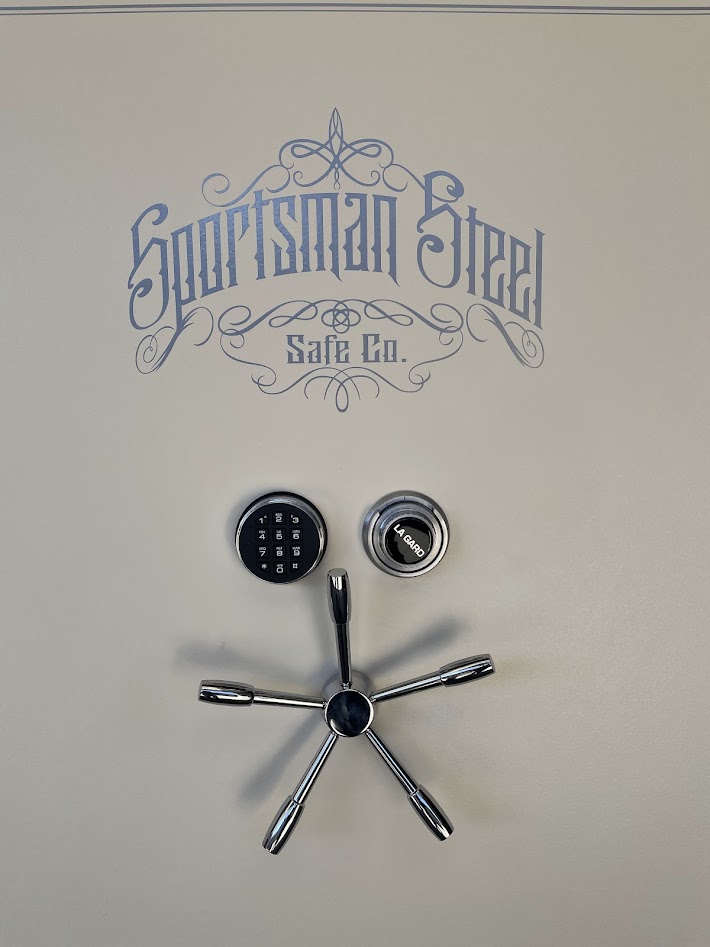

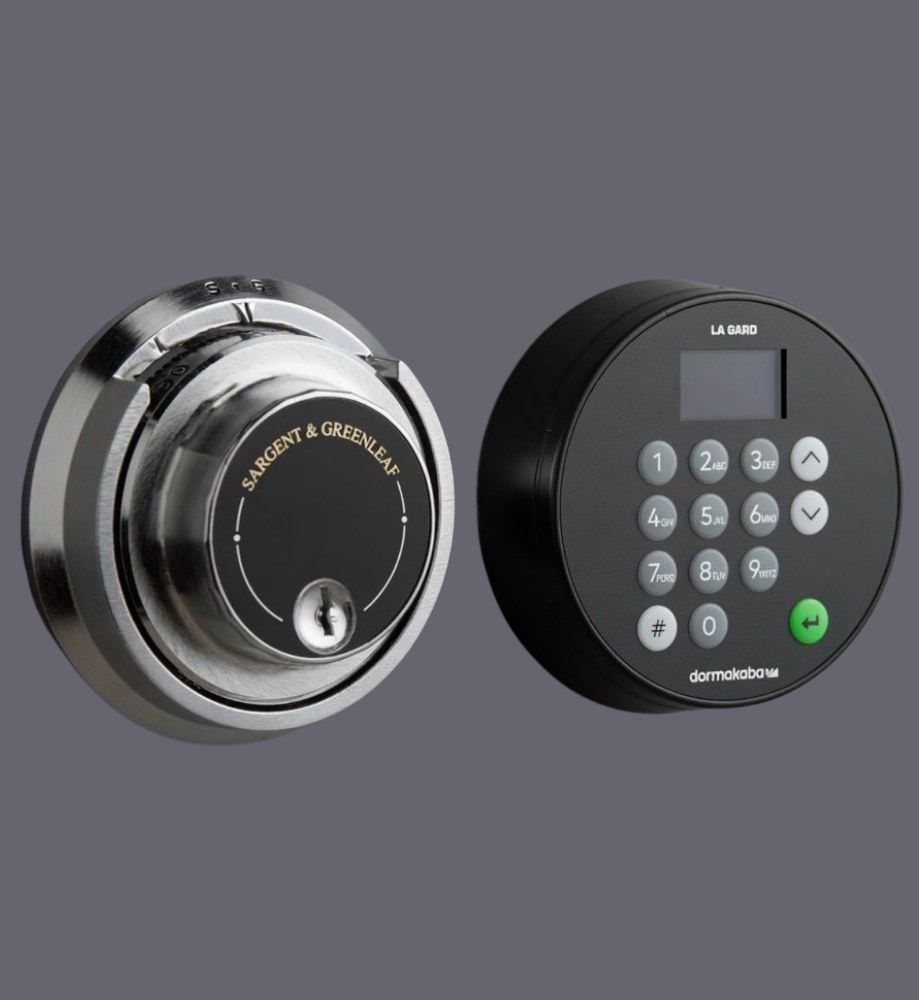

Dual Locking System - Check & Balance - $659 Biometric Display Extra

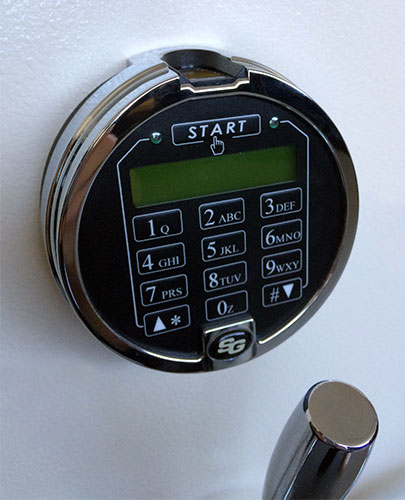

Biometric Lock System - Thumbprint Reader - $595

S & G Biometric Lock - Group I

This premium Group I American-made lock reads your fingerprint! Just fit your thumb on the "Print Pad" and enter your vault in split-seconds. You can program up to 7 fingerprints & comes with a lifetime warranty. -- $595

Manipulation-Proof Lock Box

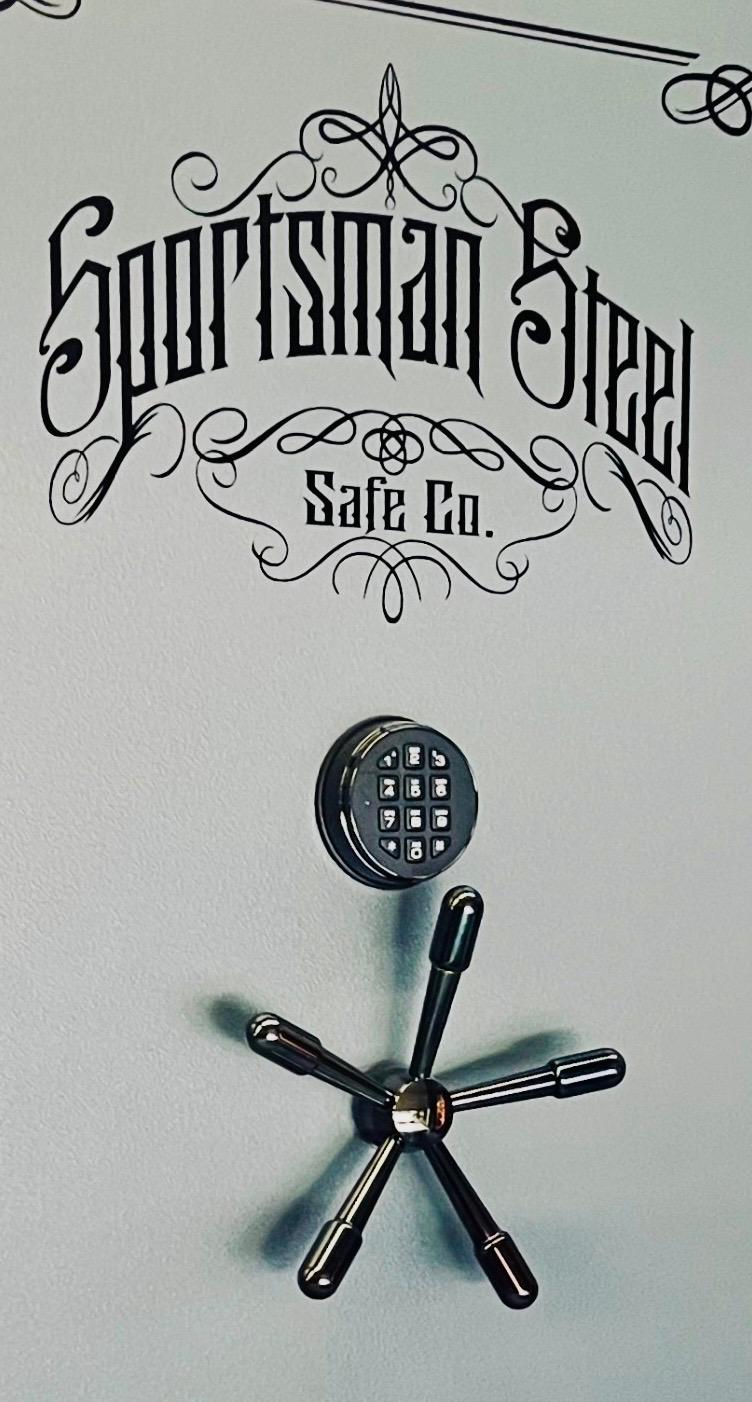

Deluxe Black Chrome Plating
Handle, Lock & Pin-stripe - $195

Three Blast-Resistors - FREE! CALL TOLL FREE FOR DETAILS - 1-800-266-7150

STAINLESS STEEL PROTECTIVE PLATE


Our new Stainless Steel Protective Plate Package protects your Vault Door's vital cut areas. It makes break-ins by torch or standard drilling devices an impossibility. A 1/4 gauge plate of custom formed stainless steel shields your Vault Door's locking device, locking bolt, internal lock box, brass-arm relocker, independent Cobra Relocker and locking bar. --
Sale Price - $ 449.

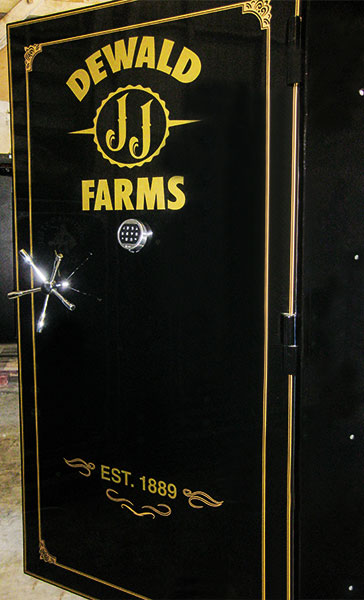

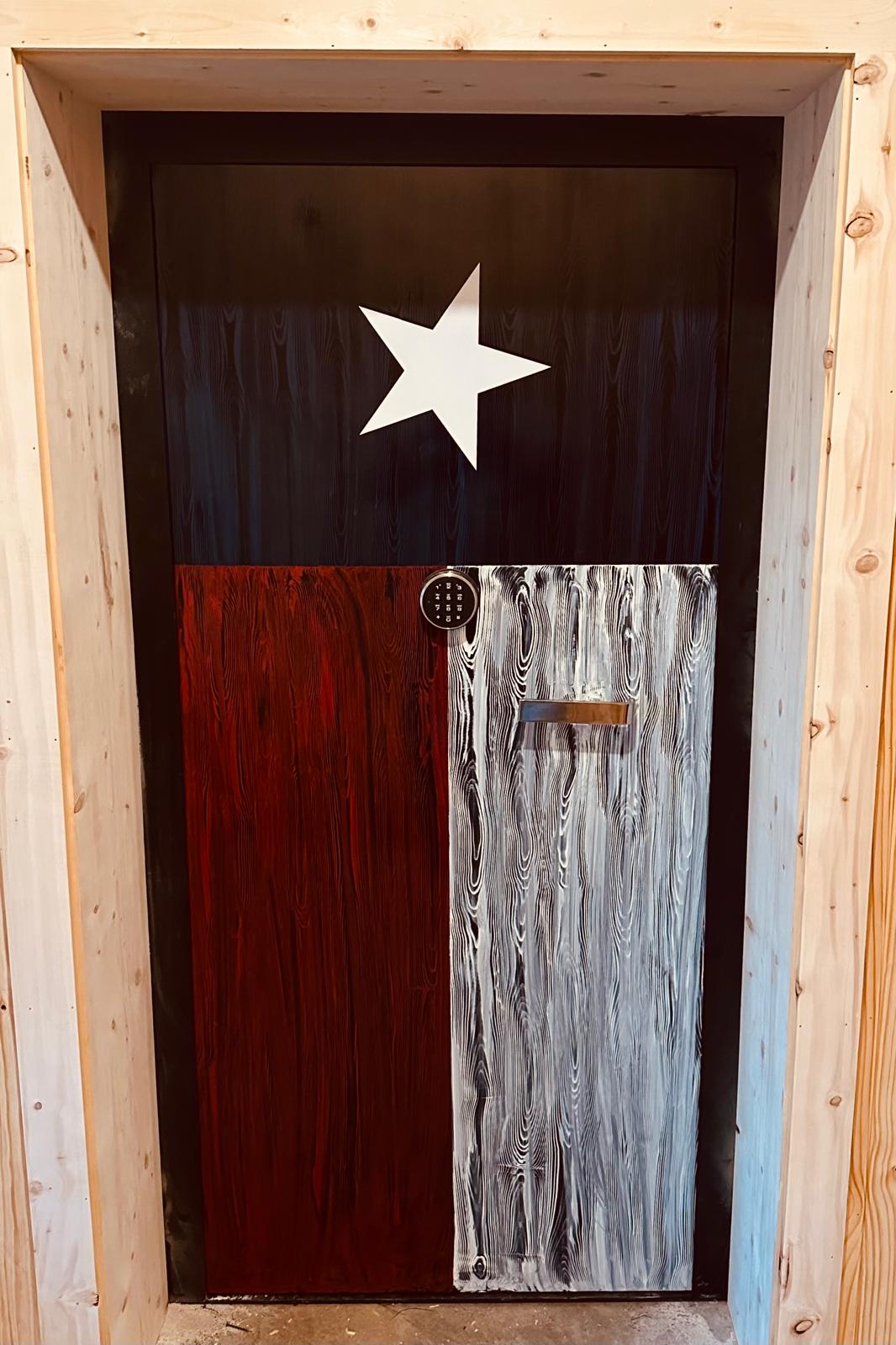

If you have a ranch, business or custom home with a name you would to put on your vault door call us for a quote. Whether it's a wine cellar door, blast vault or walk-In vault room, we will personalize it at factory direct prices.

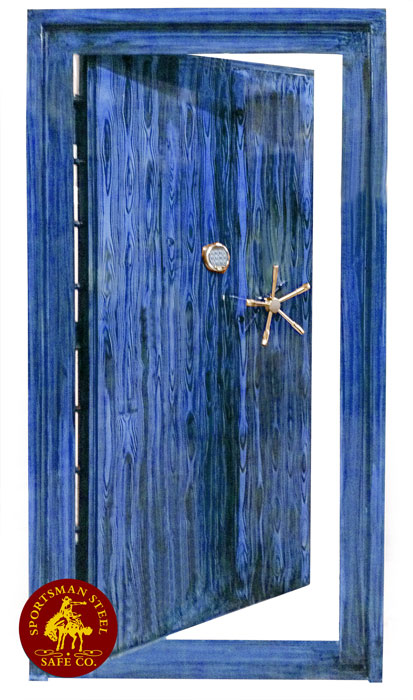

Customize your vault door with your name or initials, custom art or pin striping.

Custom Vault Room Door

"True Innovation isn't about making the best vault. It's about making the best vault at a price everyone can afford."

Kevin Hand
Vice President and VD Designer

Call us today for a free quote 1-800-266-7150

"No Vault Doors Broken into in 42 years!!!"

Note: All Vault Doors come with hinges on the right side - Left-hand hinges available upon request.
*Fire time estimates are based on existing tests done in the fire industry and information we've received from fireproof experts, fire resistance research and in-house testing on our fire gaskets. These fire estimates are also based on vault doors being installed in vault rooms with approximately 10" thick concrete wall. Call if you have questions on custom fireproof products at our company - 800 - 266 - 7150

All Vault Dimensions are exterior dimensions including frame. True walk through of outswing doors is about 4” less than rough opening and 6” less for inward swing doors.
